1.66mm Wide-angle Peephole Camera Supports Two-way Audio Communication

Brand Name:	HCVsight
Model Number:	HC-WHSXMY1.66
MOQ:	50 pieces
Price:	US$29.99/50~199 pieces US$28.49/200~499 pieces US$27.09/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Sensor:

1/2.9”CMOS

Lens:

150°（Customizable）

Pixel:

2MP

Microphone:

Built-in/External

Connection Mode:

Wifi

Materials:

Metal

Warranty Period:

1 Year Warranty

Application:

V380 Pro App

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

wide-angle peephole camera with two-way audio

1.66mm peephole camera wifi

peephole security camera with audio

Product Description

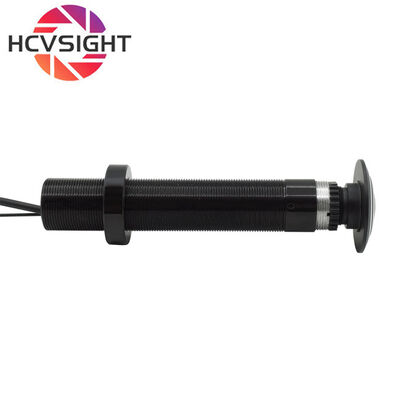

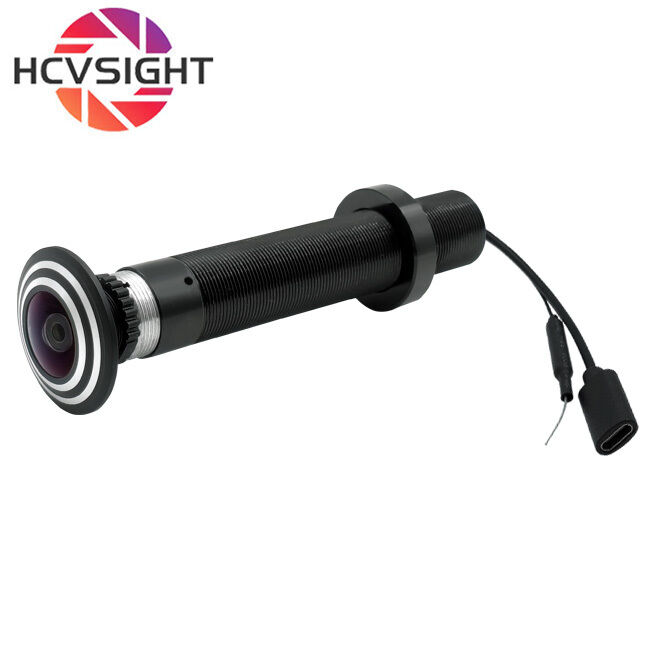

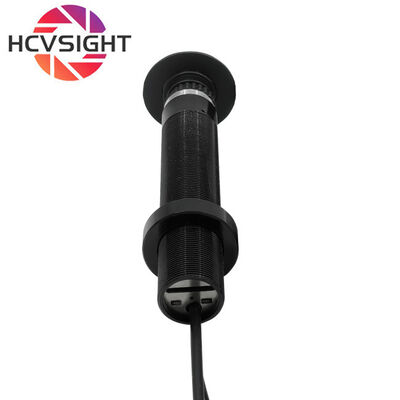

1.66mm Wide-angle Peephole Camera Supports Two-way Audio Communication

This 1.66mm wide-angle fisheye camera features a 150-degree fisheye lens that captures significantly wider scenes compared to standard peephole cameras. The expanded field of view reduces blind spots and minimizes the number of cameras needed for complete coverage. With its compact design and wireless WiFi technology, installation is simplified without complex wiring—simply connect to your home WiFi network for remote monitoring via mobile phone or computer. The built-in microphone and speaker support real-time two-way audio communication, enabling remote conversations through your device for enhanced home security. Ideal for homeowners, distributors, and security solution providers seeking reliable, high-definition, and easy-to-install surveillance equipment.

Key Features

1080p HD Imaging
Equipped with a 2-megapixel high-definition camera providing accurate color reproduction and minimal exposure issues for clear, undistorted visitor images.
Wide-angle 150° Fisheye Lens (1.66mm)
Features a 1.66mm fisheye lens with a 150-degree field of view, ideal for room monitoring, panoramic surveillance, and smart security applications.
Real-Time Remote Monitoring and WiFi Connectivity
Built-in wireless WiFi module enables live video streaming, alerts, and recording viewing via mobile application.
Easy Installation and Strong Compatibility
Designed to replace traditional mechanical peepholes without complex wiring. Compact size fits most standard doors, perfect for real estate projects, home renovations, and hotel upgrades.
Two-Way Audio Intercom
Supports clear two-way voice communication with visitors at the door via mobile phones.
Multi-Device Sharing
Allows simultaneous connection and viewing on multiple devices for family members to share monitoring footage.

Technical Specifications

Sensor	1/2.9" CMOS
Pixel	2MP
Compression format	H.265
Frame rate	1920x1080 25fps
Audio	Support
Operating voltage	DC 5V
Storage	Support Cloud Storage/TF Card (Max 128GB)
Dimensions	Lens diameter 33.5mm, body diameter 16mm, total length 89mm
Lens	EFL: 1.66mm
FOV	150°
Technology	2.4G WiFi Wireless
Model No	HC-WHSXMY1.66

Product Application

Home entrance door security: Replaces traditional peepholes as the first line of defense, providing intelligent real-time monitoring of exterior situations.
Remote reception and communication: Enables visual conversations with visitors or couriers via mobile phone when away from home.
Safety protection for solitary individuals: Provides security for women or elderly people living alone by allowing identity verification before opening the door.
Shop welcome monitoring: Installed at shop entrances for customer greeting reminders and traffic recording, balancing customer service and security functions.
Temporary security for renting: Simple and effective temporary security solution when installing large monitoring equipment is impractical.

FAQ

Can I purchase samples?

Small batch samples of 1-50pcs are supported.

What types of cameras do you manufacture?

We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition
Industrial cameras for automated inspection and measurement
Security vision cameras for surveillance and monitoring

How is the quality control?

All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS standards.

What is the lead time?

In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
