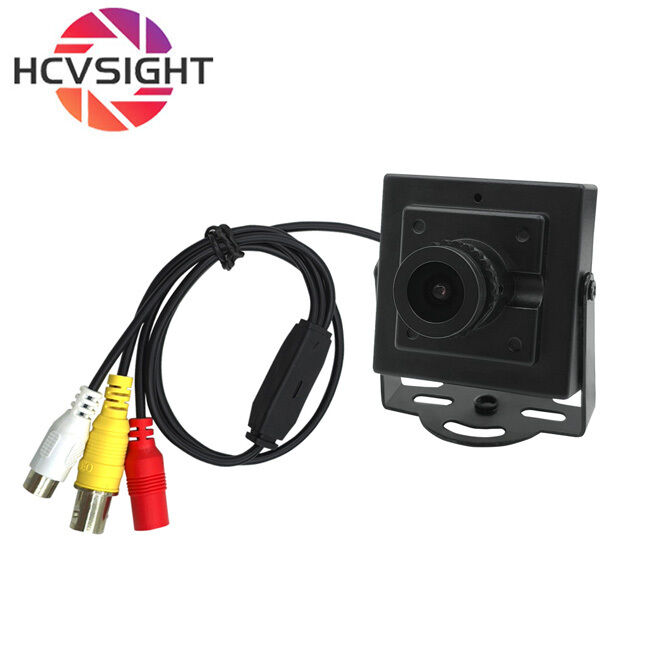

1080P 36x36mm 2.8mm Wide-angle Lens Miniature CCTV AHD Safety Analog Camera

Brand Name:	HCVsight
Model Number:	HC-A2MP2.8-36
MOQ:	50 pieces
Price:	US$32.69/50~199 pieces US$31.29/200~499 pieces US$30.19/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Interface:

AHD

Pixel:

2MP

Sensor:

1/2.8" CMOS

Frame Rate:

25fps

Working Voltage:

DC 12V

Product Size:

36mmX36mm

Warranty Period:

1 Year Warranty

Interface Type:

BNC

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

36x36mm AHD security camera

2.8mm wide-angle CCTV camera

1080P analog surveillance camera

Product Description

1080P 36x36mm 2.8mm Wide-angle Lens Miniature CCTV AHD Safety Analog Camera

In scenes with limited space or the need for covert monitoring, traditional cameras often appear out of place. This 1080P 2.8mm wide-angle miniature AHD analog camera is designed specifically for the needs of small spaces, high image quality, and easy installation. Whether you are a system integrator, engineering contractor, or a homeowner who needs to install surveillance for retail stores, offices, taxis, or elevators, this product can seamlessly integrate into the environment with its extremely compact 36x36mm metal body, achieving seamless safety protection.

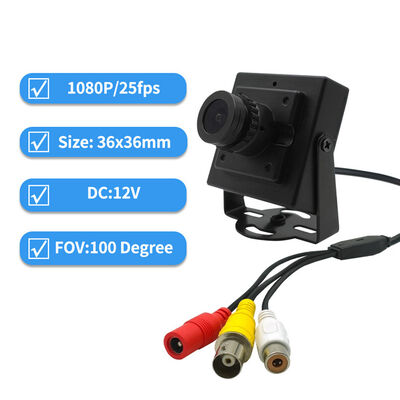

Technical Specifications

Sensor	1/2.8" CMOS
Pixel	2MP
Signal	AHD
Frame rate	1920×1080@25fps
Operating voltage	DC 12v
Product dimensions	36mm×36mm
Model No	HC-A2MP2.8-36
Interface type	BNC
Material	Metal
Lens	2.8mm
View angle	100 Degree

Product Features

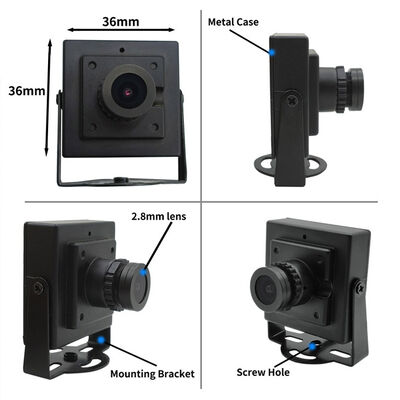

Mini casing, powerful concealment: The camera size is only 36x36mm, and the all metal casing not only ensures heat dissipation and durability, but also makes the device less noticeable after installation. Adapt to various indoor and outdoor environments. For outdoor semi outdoor application scenarios, its structure can effectively prevent dust and damage.
2.8mm wide-angle lens, 100° wide field of view without blind spots: Small stature does not mean narrow field of view. Equipped with a 2.8mm high-definition wide-angle lens, with a horizontal viewing angle of up to 100 degrees, it can easily cover panoramic views of elevator cars, corridors, taxi interiors, or small stores.
1080P full HD image quality, with every detail fully displayed: Using a 1/2.8-inch CMOS sensor, effectively outputting 1920x1080P full HD resolution.

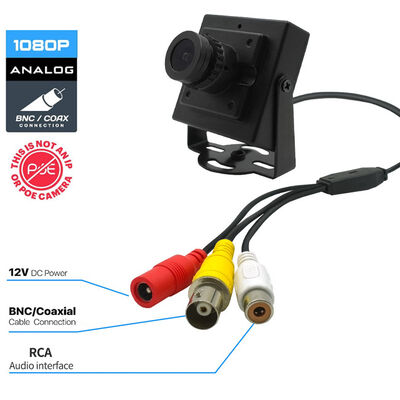

True all-around compatibility: AHD/TVI/CVI/CVBS four in one: This camera supports AHD/TVI/CVI/CVBS four signal outputs, seamlessly integrating with the vast majority of analog or high-definition coaxial DVRs on the market.

Application Scenarios

Retail and Catering: Loss prevention at checkout counter, analysis of in store customer flow, and monitoring of kitchen lighting and stoves.
Transportation: In car monitoring for taxis/ride hailing services, door monitoring for buses, and monitoring of truck compartments.
Buildings and elevators: Internal monitoring of elevator cars, narrow corridors, and vending machines.
Finance and Office: ATM machine interiors, small safes, open plan offices, conference rooms.

Customized Services and Procurement Information

As a professional camera module supplier, we provide comprehensive OEM/ODM customization services:

Lightweight customization service: Supports custom logo and product label design
Customization based on drawings: The installation structure can be adjusted according to your drawings
Sample customization: Providing sample development services to meet special application needs
Customized on demand: For large quantities of customers, adjustable parameter specifications
