15*15mm 8-megapixel 4K Autofocus Mini USB Camera Suitable For Robotic Vision

15*15mm 8-megapixel 4K Autofocus Mini USB Camera Suitable For Robotic Vision

Brand Name:	HCVsight
Model Number:	HCU-ZDDJ158
MOQ:	50 pieces
Price:	US$39.59/50~199 pieces US$37.69/200~499 pieces US$35.79/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Pixel:

8mp

Compatibility:

Windows/Mac/Linux

Frame Rate:

15fps

Color:

Black

Product Dimensions:

15mmx15mm

Sensor:

1/3.2”CMOS

Interface:

USB 2.0

Microphone:

Built-in/External

Focus Type:

Auto-focusing

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

Autofocus USB Camera

8mp USB Camera

USB 2.0 camera usb

Product Description

15*15mm 8-megapixel 4K Autofocus Mini USB Camera Suitable For Robotic Vision

This 8-megapixel 4K autofocus mini USB camera features an advanced 8-megapixel CMOS sensor and a fast autofocus lens, ensuring consistently clear images, high color accuracy, and stable performance under various lighting conditions. With its ultra-miniature 15×15 mm size and driverless UVC compatibility, it fully supports Windows, Linux, Android, and other UVC-compliant platforms, making it an ideal plug-and-play PC camera for rapid product integration. It's perfect for embedded systems, self-service terminals, robots, medical equipment, access control systems, machine vision platforms, and various OEM commercial devices.

Technical Specifications:

Sensor	1/3.2"CMOS
Pixel	8MP
Resolution	(3264×2488 @ 15fps)
Compression Format	MJPG/YUV2
Focus type	Auto-focusing
Audio	Support
Power Requirements	DC 5V, 0.25W
Operating Temperature	<70°C
Interface	USB 2.0
Lens Specifications	F.NO: 2±5% Focal Length: 3.57mm Distortion: <1.5%
FOV	78°
Compatibility	Windows XP/7/8/10, Linux (UVC), Android, Mac
Supported Software	Zoom, Teams, Webex, YouTube,Facebook Live

Product functions and features

4K Ultra High Definition Image Quality: With 8 million pixels of ultra-high resolution and support for 3840x2488 resolution, the image details are vividly displayed, and the color reproduction is realistic and vivid, bringing a stunning visual experience that far exceeds ordinary 1080P cameras.

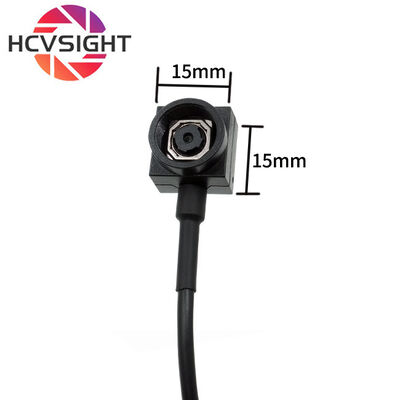

Ultimate Mini, Hidden and Invisible: The 15mm x 15mm cube design is as lightweight as a coin and can be regarded as a model of industrial design. It can be seamlessly integrated above laptop screens, monitor borders, or video conferencing all-in-one machines, almost invisible, maximizing device integrity and aesthetics.
Intelligent autofocus system: equipped with high-speed autofocus (AF) function, it can quickly and smoothly focus on the subject's face or display objects. Even if you move back and forth, the image can always remain clear and sharp, bidding farewell to blurry and awkward situations.
Built in noise cancelling microphone: Equipped with an omnidirectional high-sensitivity microphone, it can effectively capture human voices and suppress environmental background noise. Clear voice calls and recordings can be achieved without the need for additional equipment, making communication seamless and smooth.
Widely compatible, plug and play: using standard USB 2.0 interface (high-speed transfer sufficient to support 4K image quality), compatible with Windows, macOS, and mainstream Linux systems.

Applications

Intelligent self-service terminal systems
Retail POS terminals
Industrial controllers
Robotics applications
Medical diagnostic equipment
Security and access control systems
Artificial intelligence machine vision equipment
Embedded IoT hardware
Barcode scanning and QR code scanning
Facial recognition/authentication
Telemedicine imaging
Robot navigation
Quality inspection and defect detection

FAQ

Q: Can I purchase samples?

A: Small batch samples of 1–50pcs are supported.

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring.

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

Technical Specifications:Specification for Fixed Focus Lens.pdf

About our more products:Huachuang Finished Product List.xls
