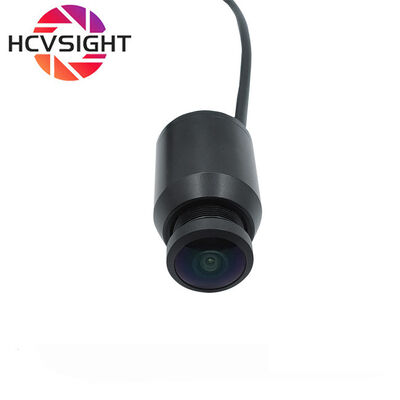

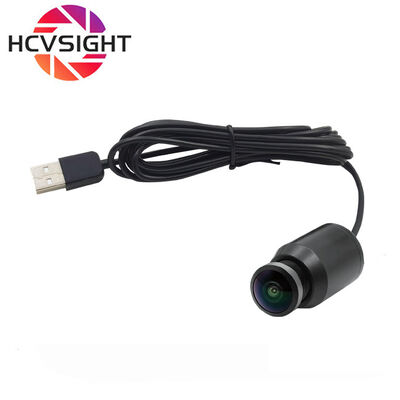

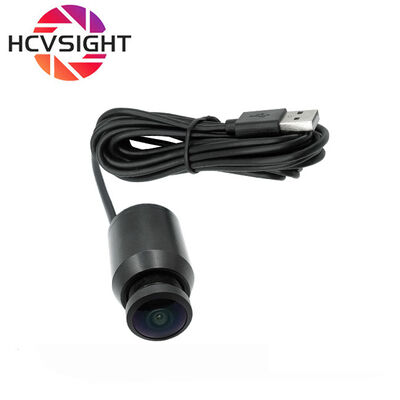

1080p Mini Bullet-shaped USB Panoramic Camera For Indoor Security Monitoring

Brand Name:	HCVsight
Model Number:	HCU-ZDT182
MOQ:	50 pieces
Price:	US$32.89/50~199 pieces US$31.29/200~499 pieces US$29.68/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Pixel:

2mp

Compatibility:

Windows/Mac OS/Linux/Android

Power Requirements:

DC 5V

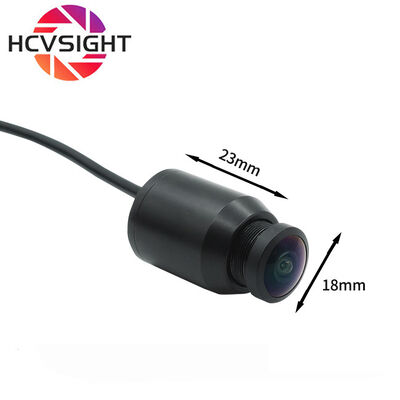

Product Dimensions:

18mmx23mm

Sensor:

1/2.9”CMOS

Interface:

USB 2.0

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

Compact Size USB Bullet Camera

Plug and Play Mini USB Camera

Built-in Microphone USB Camera

Product Description

1080p Mini Bullet-shaped USB Panoramic Camera For Indoor Security Monitoring

This mini bullet-shaped USB webcam features 1080p HD video, driverless UVC compatibility, and a 210° panoramic waterproof lens, providing stable and clear images suitable for retail stores, small businesses, offices, warehouses, and home environments. Plug and play via the most universal USB interface, it instantly delivers clear, stable, and large-scale live images without complicated setup.

Product Features:

2MP High-Definition Pixels for Clear Details: This camera features a 2MP image sensor, outputting 1920×1080 @30fps high-definition video with detailed, lifelike images and high color reproduction.

Plug-and-Play USB Connection (UVC Standard): This camera supports the USB 2.0 UVC protocol and is ready to use immediately without additional drivers. It is seamlessly compatible with Windows, Linux, Android, and most video conferencing platforms and security software.

Compact Bullet Design for Flexible Installation: The mini bullet design features a compact and durable housing, allowing for mounting on walls, ceilings, desktops, and shelves.

210° Panoramic Waterproof Lens for Wide Field of View: With a 210° diagonal field of view, blind spots are reduced, eliminating the need for frequent angle adjustments.

Technical Specifications

Parameter	Value
Sensor	1/2.9"CMOS
Resolution	2MP
Frame Rate	1920×1080 @30fps
Interface	USB 2.0
Power Supply	DC 5V
Dimensions	18mm×23mm
Working Temperature	<70°C
Lens Specifications	Effective length: 1.5mm Focal length: 2.0+5% Distortion: <-17% Component: 2G4P+IR
FOV	210°
Product Model	HCU-ZDT182
Operating systems	Windows/Linux/Android/MacOS

Applications

Our camera module is widely used in various machine vision and equipment monitoring fields including:

ATM machines and banking equipment
Medical inspection report printers
Vending machines and digital signage
Industrial automation equipment
Security surveillance systems
Law enforcement equipment
Mobile device external cameras

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Why Choose our USB Camera?

OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
Industrial grade reliability: ensuring stability during long-term operation.
Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

Lens specification sheet:Panoramic lens specification sheet.pdf

About our more products:Huachuang Finished Product List.xls
