1080P 2MP USB Door View Camera 175° Wide-Angle Full HD Peephole Camera

1080P 2MP USB Door View Camera 175° Wide-Angle Full HD Peephole Camera

Brand Name: HCVsight
Model Number: HCU-DMY212
MOQ: 50 pieces
Price: US$43.99/50~199 pieces US$41.79/200~499 pieces US$39.69/500~999 pieces
Payment Terms: T/T
Supply Ability: 100,000 pieces per month
Detail Information
Place of Origin:
ShenZhen,China
Certification:
CE、RoHS、FCC
Pixel:
2mp
Compatibility:
Windows/Mac OS/Linux/Android
Frame Rate:
30fps
Product Dimensions:
(36-90mm)Adjustable
Sensor:
1/2.9"CMOS
Interface:
USB 2.0
Angle:
175°
Warranty Period:
1 Year Warranty
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100,000 pieces per month
Highlight:

2MP USB industrial camera

,

175° wide angle USB camera

,

USB camera for industrial monitoring

Product Description

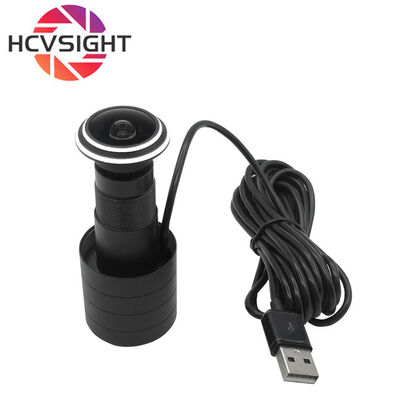

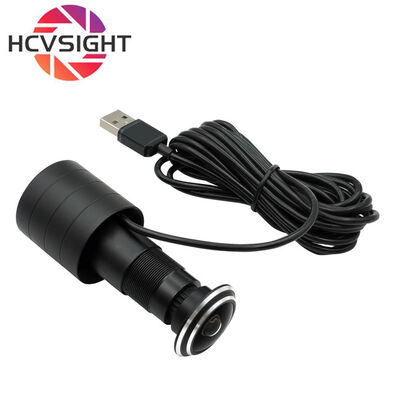

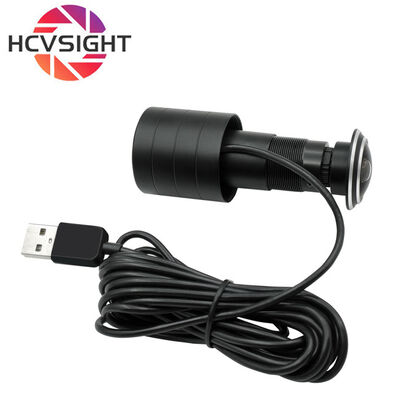

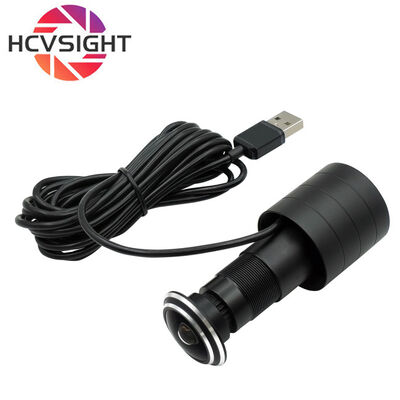

1080P 2MP USB Door View Camera 175° Wide-Angle Full HD Peephole Camera

This 2 million ultra wide angle USB door eye camera is a revolutionary product designed specifically for modern security needs. It perfectly replaces the traditional old and narrow field of view physical cat eyes, presenting the world outside the door in real-time on your phone screen or display device with 1080P full HD picture quality and 175 ° ultra wide angle field of view. Powered by advanced USB 2.0 interface, it is extremely easy to install without complex wiring or expensive batteries. Whether it's an apartment, a rental house, or your own villa, it can be plug and play, providing you with 24-hour uninterrupted security monitoring at the doorstep, allowing you to be familiar with the situation at your doorstep and feel at ease no matter where you are.

Key Features

2 million high-definition pixels: using high-quality optical sensors, outputting full HD videos with a resolution of up to 1920x1080P, with clear and delicate images.
175 ° fisheye wide-angle lens: Breaking through the narrow field of view limitations of traditional cat eyes, the lens can cover a large area of the doorway, easily seeing packages placed on the ground, strangers hiding on the side, and even situations on both sides of the hallway, effectively avoiding visual blind spots and providing more comprehensive protection.
DC 5V low-power power supply&USB 2.0 interface: It can directly use common mobile phone charging heads, power banks, computer USB ports, or smart TV USB ports for power supply, eliminating the hassle and cost of frequent battery replacement, achieving 7x24 hour uninterrupted monitoring, energy-saving and environmentally friendly.
Multi functional USB interface: Standard USB output interface with strong compatibility. It can easily connect to smart TVs, smartphones, and computer monitors at home for real-time display.Compatible with Windows, Mac OS, Linux, and Android systems.

Technical Specifications
Specification Detail
Sensor 1/2.9"CMOS
Resolution (1920x1080)@30FPS
Pixel 2MP
Lens EFL:2.1mm, F.ON:2.4, 7G+650IRCUT elements
FOV 175°
Interface USB 2.0
Power DC 5V, 0.25W consumption
Operating Temperature <70°C
Model Number HCU-DMY212
Compatibility Windows/Mac OS/Linux/Android
Applications

This versatile camera is suitable for:

  • Home security and door monitoring systems
  • Industrial equipment monitoring (production lines, machinery status)
  • ATM and banking systems
  • Medical equipment and hospital systems
  • Vending machines and digital signage
  • Robotics and automated welding equipment
  • Flame monitoring in industrial boilers
  • Law enforcement and surveillance systems
Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Why Choose our USB Camera?
  • OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
  • Industrial grade reliability: ensuring stability during long-term operation.
  • Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
  • Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
  • Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.
1080P 2MP USB Door View Camera 175° Wide-Angle Full HD Peephole Camera 0
1080P 2MP USB Door View Camera 175° Wide-Angle Full HD Peephole Camera 1
