2.8-12mm Manual Zoom Webcam OTG UVC 1080p USB Camera For Android Devices

2.8-12mm Manual Zoom Webcam OTG UVC 1080p USB Camera For Android Devices

Brand Name: HCVsight
Model Number: HCU-FK202B28
MOQ: 50 pieces
Price: US$36.39/50~199 pieces US$34.59/200~499 pieces US$32.89/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/pieces/month
Detail Information
Place of Origin:
Shenzhen,China
Type:
USB Camera
Pixel:
2MP
Dimensions:
22mmx22mm
Lens Angle:
93°(customizable)
Focus Type:
Manual Hand
Texture:
Aluminium Alloy
Colour:
Black
Wire Length:
Default 1.2m
Interface:
Android
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/pieces/month
Highlight:

2MP USB camera with manual zoom

,

USB camera 2.8-12mm lens

,

20x20mm USB camera with zoom

Product Description

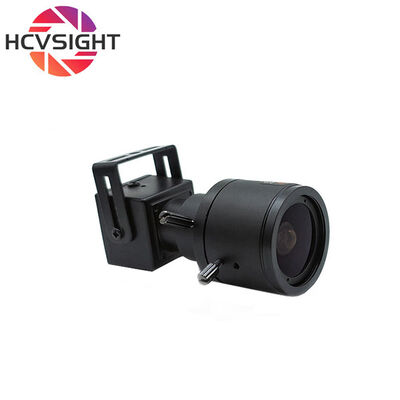

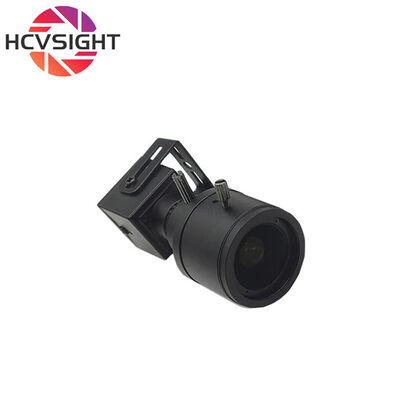

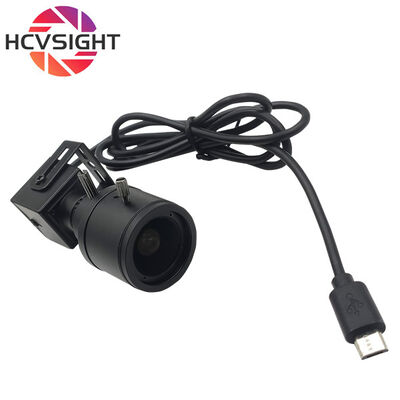

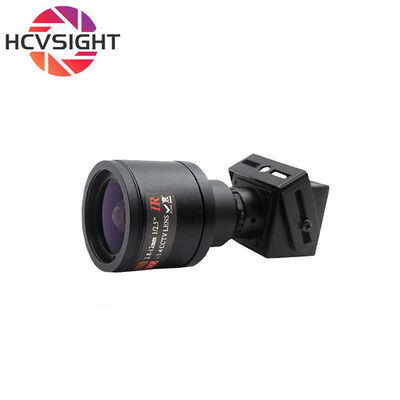

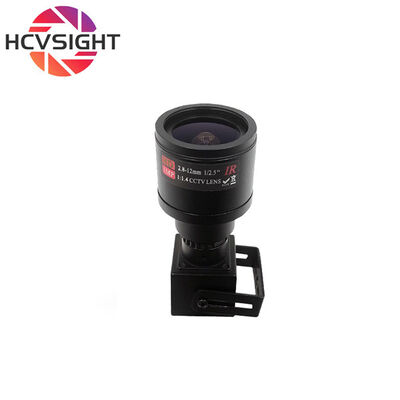

2.8-12mm Manual Zoom Webcam OTG UVC 1080p USB Camera For Android Devices
Product Description
This 2.8–12mm manual zoom USB/OTG UVC camera features an ultra-mini 22×22mm design, a driverless UVC architecture, and a high-definition imaging system. It supports Android, Windows, and Linux systems. This compact camera uses the UVC protocol for plug-and-play functionality without the need for additional drivers. It is suitable for machine vision, industrial equipment, electronic magnifying glasses, microscopes, and other professional applications.
Technical Specifications
Parameter Value
Sensor 1/2.9"CMOS
Pixel 2MP
Compression Format MJPG/YUV2
Frame Rate 1920*1080 @ 30fps
Operating Voltage DC 5V

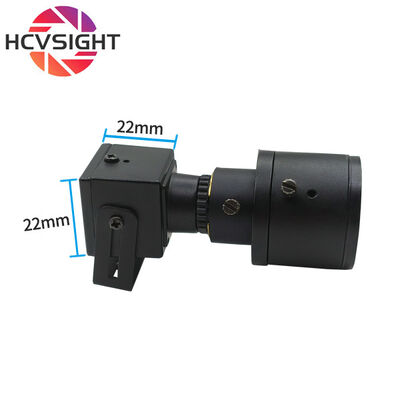

size 22x22mm
White Balance Automatic
Operating Temperature <70°C
Power Consumption 0.25W
Interface Type Android
Lens Specifications EFL:2.8-12mm, F.ON:1.4, Distortion:-1.0%, Element:4E+IR,
Supported OS WinXP/Mac OS/Linux/Win7/Win8/Win10/Android
Product Advantages

2.8–12mm Manual Varifocal Lens: Supports close-up detail capture and long-distance scene shooting, suitable for complex installation environments across various industries.

Ultra-Mini 22×22mm Camera Board: Easy to embed in compact devices, small terminals, and modular structures.

USB / OTG / UVC Plug-and-Play: Driverless architecture, compatible with Windows, Android, Mac OS, and Linux systems.

High-Definition Imaging (1080P/720P): Clear image quality, stable imaging, supports continuous output for extended periods.

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Product Application
Ideal for various machine vision and monitoring applications including:
  • ATM and bank account opening machines
  • Vending machines and digital signage
  • Hospital inspection report printers
  • Industrial equipment (welding machines, patch machines)
  • Security surveillance systems

Why choose our USB camera?


✔ High Compatibility for Fast Integration

Works across multiple platforms without extra coding or driver installation.

✔ Industrial-Grade Stability

Engineered for long-term continuous operation in demanding environments.

✔ Scalable OEM Customization

Lens, cable, housing, FOV, and interface can be tailored to meet product requirements.

✔ Cost-Effective Solution for Large Deployment

Ideal for companies needing consistent performance at scale, such as integrators, manufacturers, and product developers.

FAQ

Q: Can we purchase samples?

A: Sure, we offer flexible procurement and samples: sample procurement (1-50 pieces) supports rapid testing and reduces development risks. Bulk purchases can enjoy price tiered discounts and support long-term cooperation.

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring.

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A: In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
