1080p Driver-free Mini USB Webcam For Machine Vision And Industrial Monitoring

Brand Name:	HCVsight
Model Number:	HCU-FKWJB202
MOQ:	50 pieces
Price:	US$33.99/50~199 pieces US$32.29/200~499 pieces US$30.69/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Pixel:

2mp

Frame Rate:

30fps

Lens:

90°（Customizable）

Sensor:

1/2.9”CMOS

Product Dimensions:

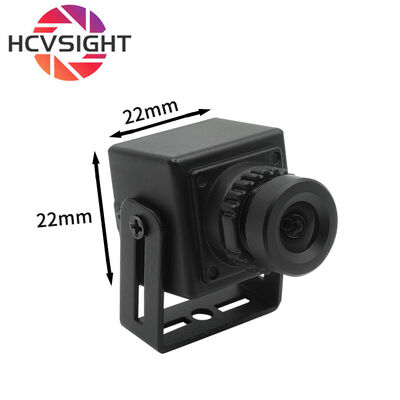

22mmX22mm

Compatibility:

Windows/Mac OS/Linux/ Android

Operating Voltage:

DC 5V

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

2MP HD USB Camera

30fps USB Webcam

High Color Reduction USB Industrial Camera

Product Description

1080p Driver-free Mini USB Webcam For Machine Vision And Industrial Monitoring

This camera utilizes an advanced 1/2.9” CMOS sensor, delivering full HD video streaming at 30fps with a resolution of 1920×1080. Equipped with a professional-grade 3.6mm distortion-free lens, it provides clear image quality and a suitable field of view. Its ultra-compact metal body (22×22mm) is heat-resistant and interference-resistant, enabling stable operation in various harsh environments. Featuring a standard USB 2.0 interface, compatible with the UVC protocol, it offers plug-and-play convenience. This camera is widely used in industrial equipment, robotics, ATMs, and embedded device integration.

Key Features

1. High-resolution 2MP imaging: Equipped with a 1/2.9-inch CMOS sensor, this camera captures crisp, sharp 1080p HD video with rich detail. A high frame rate of 30fps ensures smooth, low-latency image transmission in applications.

2. UVC plug-and-play compatibility: Supporting the UVC protocol, this camera is instantly compatible with Windows, Linux, Android, and macOS systems without requiring additional drivers, significantly reducing integration time for engineers.

3. Industrial-grade construction: Its rugged housing and stable PCB design ensure stable performance during long-term industrial operation. It supports a wide operating temperature range and can be deployed in harsh environments.

Technical Specifications

Sensor	1/2.9"CMOS
Resolution	2MP
Frame Rate	1920x1080 @ 30fps
Compression Format	MJPG/YUV2
Operating Voltage	DC 5V
Power Consumption	0.25W
Interface	USB 2.0
Lens	EFL:3mm, F.ON:2.2,
FOV	90°
Product Model	HCU-FKWJB202
Operating Temperature	<70°C
Dimensions	22mmx22mm
Operating Systems	Windows/Linux/Android/Mac OS

Applications

This versatile camera module is suitable for various industrial and commercial applications including:

ATM machines and banking equipment
Medical diagnostic equipment
Vending machines and digital signage
Industrial automation (SMT machines, welding equipment)
Security surveillance systems
Robotics and crane monitoring
Flame detection in power plants
Law enforcement equipment

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Why Choose our USB Camera?

OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
Industrial grade reliability: ensuring stability during long-term operation.
Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

Lens specification sheet:Specification for 3.6mm undistorted lens.pdf

About our more products:Huachuang Finished Product List.xls
