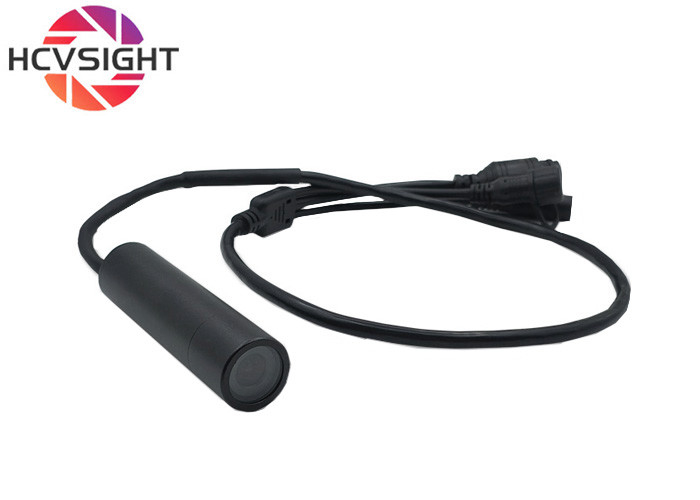

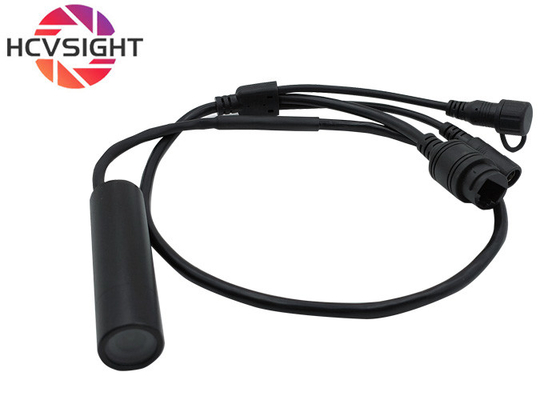

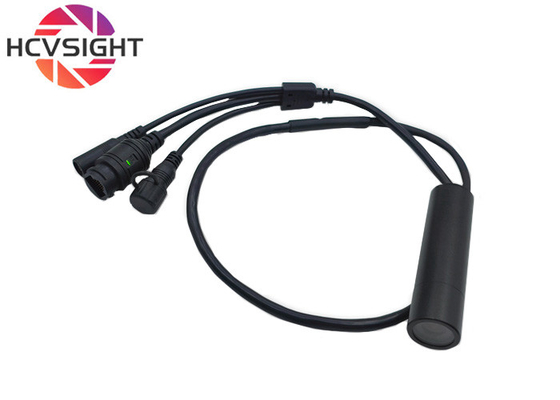

4MP Mini Network Camera 20x77mm with 3.6mm Lens DC 12V

4MP Mini Network Camera 20x77mm with 3.6mm Lens DC 12V

Brand Name:	HCVsight
Model Number:	HCW-BT204WL
MOQ:	50 pieces
Price:	US$45.99/50~199 pieces US$43.69/200~499 pieces US$40.99/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Signal:

Network Signal

Pixel:

4mp

Frequency Operating Voltage:

DC 12v

Lens Type:

Customizable

Color:

Black

Sensor Type:

CMOS

Frame Rate:

25fps

Product Size:

20mmX77mm

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

4MP WIFI Camera

25fps WIFI Camera

CCD Water cannon camera

Product Description

4MP Mini Camera With 3.6mm Lens, Miniature Bullet, Indoor Safety IP Camera

This ultra miniature 4-megapixel high-definition network camera features an innovative pen holder design (20×77mm) that combines excellent imaging performance with an extremely compact size. The all metal body, paired with professional grade image sensors, supports network power supply and high-definition video transmission, making it an ideal solution for concealed surveillance, confined spaces, and special industrial applications. Without the need for complex installation, power supply and data transmission can be achieved with just one Ethernet cable, redefining the standard for miniaturized security equipment.

Technical Parameters

Specification for 3.6mm lens.pdf

Sensor	1/2.8"
Pixel	4MP
Compression format	H.264/H.265
Frame rate	2560x1440 25fps
Audio	nonsupport
Frequency operating voltage	DC 12v
Product dimensions	20mmX77mm
White balance	Automatic
Operating temperature	<70°
Power consumption	0.25w
Model No	HCW-BT204WL
Intenface type	RJ45
Cable length	Default
Lens	EFL:3mm F.ON:2.0 Distortion: <-1.0% Element:4E+IR Angle:D=95° H=83° V=55° Thread:M12
Chip Type	COMS

Product Advantages and Application Scenarios

Signal stability, many years of small camera module development and design experience, to avoid a lot of signal interference factors.
4 million ultra high definition pixels: providing 2560x1440@30fps High definition picture quality, richer presentation of details.

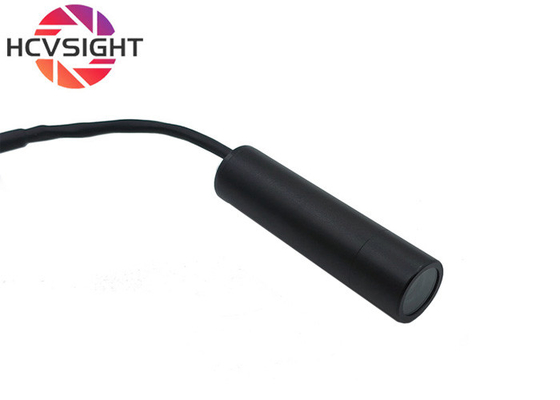

Pen holder type metal body: 20 × 77mm ultra small design, only equivalent to the size of a marker pen.
All metal shell: excellent heat dissipation, impact and corrosion resistance.
High color reduction degree, decades of debugging experience of software engineering department, lighting, outdoor sunshine, stairwell dark state, look at faces, see green plants, look at flames and other simulated different environments for camera color debugging. Make the color reduction degree to achieve the best.

Products used to a variety of machine vision, equipment monitoring. Such as: ATM, bank to open an account, queuing, hospital inspection report, printer, vending machines, advertising machine, all-in-one, electronic said, robot, crane, patch machine, automatic welding equipment, fire water cannon, law enforcement instrument external, android mobile phone external camera, computer camera, security surveillance cameras, coal power boiler flame monitoring, certification than equipment, high meter and other machine equipment embedded.

Customization

Customization Services: USB camera module, AHD camera module, CVBS camera module, wired webcam module, wireless wifi camera module, etc.

High pixels, 1mp 2mp 4mp 5mp 8mp 12mp and other highest pixel reached 12 million. There is a fixed focal length and autofocus, Product size is diversified, the same pixel size can be selected, the product size is 6mmX6mm, 12mmX12mm, 23mmX23mm, 28mmX28mm, 32mmX32mm, 38mmX38mm, etc.At the same time, the size can be extremely small, and it can be said that the smallest products on the market currently (only AHD / USB / CVBS, no storage, no transmission function).Which can be independently selected according to the application scenario.

Huachuang Finished Product List.xls

Support and Services

Our Camera product comes with comprehensive technical support and services to ensure that you have the best experience possible. Our team of experts is always available to help you with any issues or questions you may have regarding the product.

Online product documentation and user manuals
Technical support via email or phone
Remote desktop assistance
Repair and replacement services
Product training and education
Customized solutions for specific needs

Our goal is to provide you with the highest level of customer satisfaction and support. Please do not hesitate to contact us if you need any assistance with your USB Camera product.
