| Brand Name: | HCVsight |
| Model Number: | HCU-ZDT202 |
| MOQ: | 50 pieces |
| Price: | US$36.89/50~199 pieces US$35.09/200~499 pieces US$31.59/500~999 pieces |
| Payment Terms: | T/T |
| Supply Ability: | 100000/pieces/mouth |

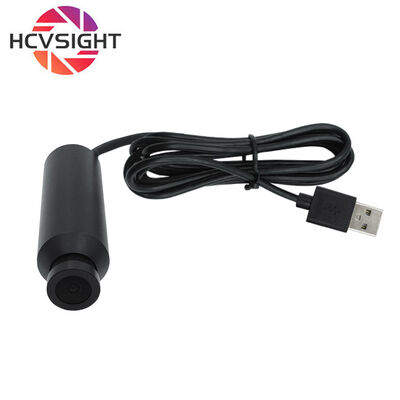

This USB bullet camera features a high-sensitivity 2MP CMOS sensor and a classic mini bullet design. Its compact size (only 20x65mm) allows for easy installation even in space-constrained environments, enabling OEMs, system integrators, and equipment manufacturers to integrate high-quality imaging capabilities into their products without increasing hardware footprint. Utilizing a stable USB 2.0 interface and conforming to the UVC (USB Video Class) standard, it offers plug-and-play functionality, delivering clear 1080p HD video without the need for additional drivers. It is designed for professional applications such as machine vision, access control, security monitoring, embedded systems, and industrial automation.
| Sensor | 1/2.9"CMOS |
| Pixel | 2MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 1920*1080 @ 30 fps |

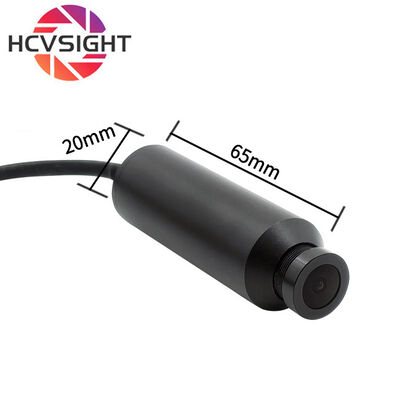

| Size | 20mmX 65mm (Base size not included) |
| Working voltage | DC 5V |
| White balance | Automatic |
| Working temperature | <70°C |
| Power consumption | 0.25W |
| Model | HCU-ZDT202 |
| Interface type | USB 2.0 |
| FOV | 120° |
| support system | Windows/Mac OS/Linux/Android |
1080P Full HD Image Quality: Equipped with a 2-megapixel high-quality CMOS sensor, supporting resolutions up to 1920x1080, it outputs clear, smooth, and detailed HD video images, ensuring accurate and reliable monitoring.
Dedicated 2.1mm Wide-Angle Lens: Providing a 120° field of view, the lens offers a wide field of view, enabling the camera to capture high-precision images in long- or medium-range applications.
Standard USB 2.0 Interface: As a UVC-compliant USB 2.0 camera, it easily runs on Windows, Linux, Android, and embedded operating systems, ensuring cross-platform compatibility and suitability for industrial and commercial deployments.
OEM and ODM Customization Support: Includes lens customization, cable length customization, logo printing, housing color customization, and firmware adjustments. This makes it ideal for OEM customers requiring reliable industrial-grade USB camera modules for long-term mass production.
Typical Applications
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).
Minimum order quantity and pricing are negotiable with 2-3 week delivery time. Payment terms: T/T. Supply capacity: 100,000 pieces/month.
FAQ
Q: What types of cameras do you manufacture?
A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:
Embedded cameras for face/object/barcode recognition
Industrial cameras for automated inspection and measurement
Security vision cameras for surveillance and monitoring
Q: Can you customize cameras?
A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)
Q: How is the quality control?
A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.
Q: What is the lead time?
A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
Lens specification sheet:Specification for 3.6mm undistorted lens.pdf
About our more products:Huachuang Finished Product List.xls
