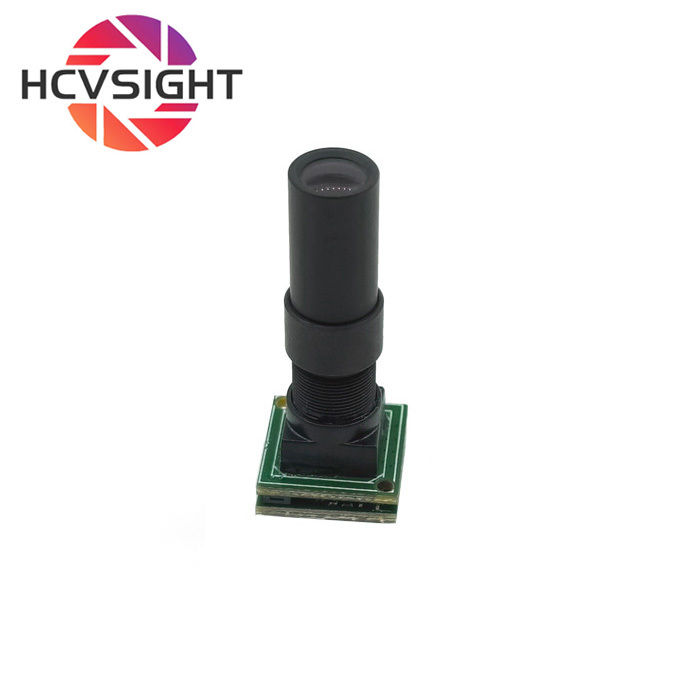

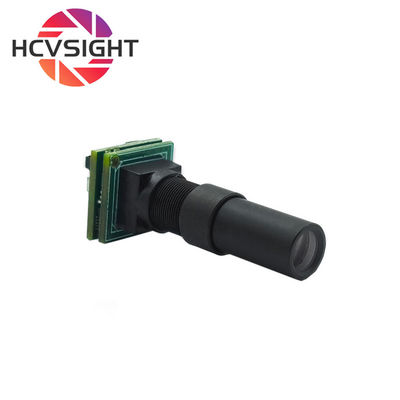

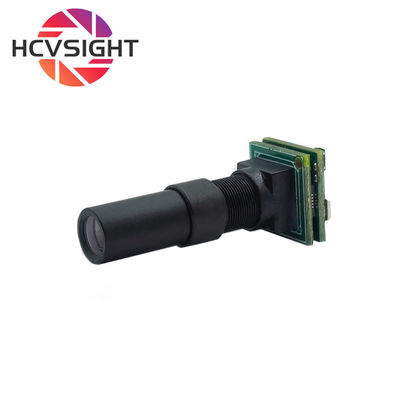

1080p Mini USB Camera Module Compact Camera Module Suitable For Laptops

This is an ultra small, high-performance USB 2.0 camera module designed specifically for embedded vision and space constrained applications. It adopts high-quality 2-megapixel CMOS sensors and advanced image processors, capable of outputting smooth video streams in up to 1080P full HD format. The module adheres to the plug and play (UVC) design concept, seamlessly compatible with Windows, Mac, Android, and Linux systems without the need to install additional drivers. Its miniaturized size of only 12x12mm makes it an ideal choice for integrating visual functions into smart hardware, maker projects, and various commercial devices.

High definition imaging quality: Equipped with a built-in 2-megapixel (1920x1080) high-definition sensor, it can capture detailed and color realistic static images and dynamic videos. Support the highest 1080P@30fps The video format output is smooth with no trailing shadows.
Plug and play, widely compatible: fully compliant with UVC standards, it runs driver free on operating systems such as Windows, Linux, Android, and Mac OS, and can be recognized as a video device when connected to a computer or development board.

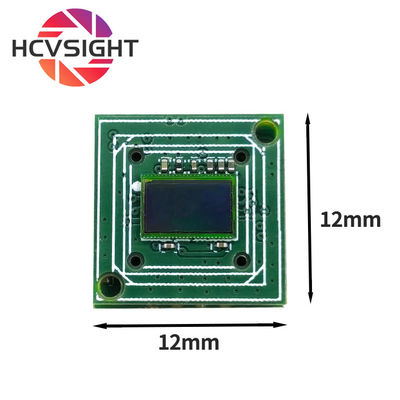

Ultra small size, easy to integrate: The core module size is only 12mm x 12mm, extremely compact, and takes up almost no space.
Very suitable for embedding into devices with strict spatial requirements, such as drones, robots, smart doorbells, portable devices, etc.
Adopting a universal USB 2.0 interface: stable transmission and strong compatibility. DC 5V power supply standard, low power consumption, can be directly powered through USB port, convenient and fast.
Multiple image parameters such as exposure, white balance, saturation, and contrast can be adjusted through software to meet the visual needs of different scenes.

Ideal for various machine vision and monitoring applications including:

• Machine Vision & AI Systems:Ideal for barcode recognition, object detection, robotics platforms, and small AI boxes.
• Kiosk & Self-Service Terminals:Used in ATM machines, smart access control, vending machines, ticketing systems.
• Medical equipment and hospital systems
• Industrial automation and robotics
• Security surveillance systems
• Flame monitoring in power plants
• Law enforcement equipment
