| Brand Name: | HCVsight |
| Model Number: | HCU-FK362TC |
| MOQ: | 50 pieces |
| Price: | US$37.99/50~199 pieces US$36.09/200~499 pieces US$34.29/500~999 pieces |
| Payment Terms: | T/T |
| Supply Ability: | 100000/pieces/mouth |

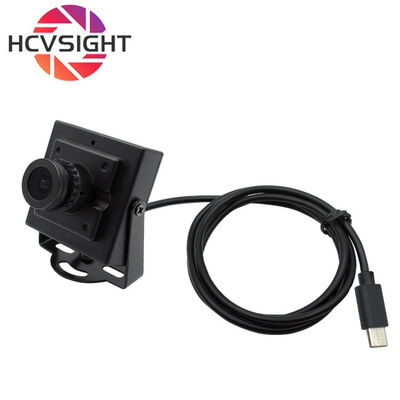

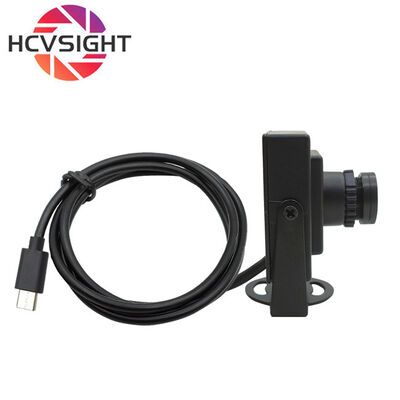

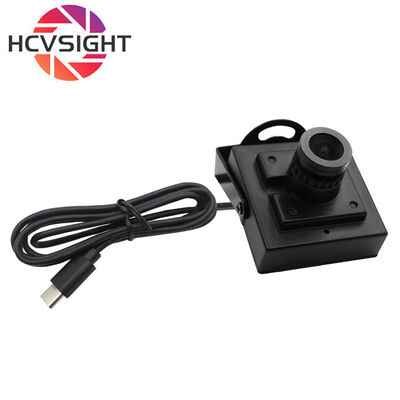

This 2MP 1080p mini camera features a high-quality 1/2.9-inch CMOS Full HD 1080p image sensor, outputting 2-megapixel (1920×1080) Full HD image quality. It delivers excellent clarity, low noise, and stable 30fps real-time video output. Its all-metal housing design provides excellent heat dissipation and durability, while also enhancing its anti-interference capabilities. With OTG support, it can directly connect to Android phones, tablets, and smart terminals, enabling rapid prototyping and deployment of portable testing devices, smart self-service terminals, medical handheld devices, and IoT edge cameras.
| Attribute | Value |
|---|---|
| Sensor | 1/2.9"CMOS |
| Pixel | 2MP |
| Compression Format | MJPG/YUV2 |
| Resolution | 1920X1080P@30fps |
| Lens Type | EFL: 2.8mm, F/2.0, M12×0.5 |
| FOV | 100°(Customizable) |
| Operating Voltage | DC 5V |
| Interface | Type-C |
| Power Consumption | 0.25W |
| Operating Temperature | <70°C |

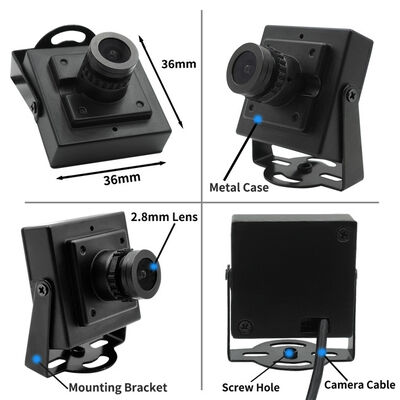

| Product Dimensions | 36mm×36mm |
| Compatibility | Windows/Mac OS/Linux/Android |
● Full HD Image Quality:Delivers sharp and accurate images at 1920×1080 resolution, supporting MJPEG and YUY2 formats.
● USB UVC Standard:No driver installation required, reducing integration time and engineering cost.Compatible with Windows, Linux, MacOS, Android.
● OTG Camera for Android Devices:Fully supports USB OTG, making it perfect for mobile inspection tools, Android-based measurement devices, portable endoscopes, and app-controlled monitoring systems.
Ideal for various machine vision and monitoring applications including:
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).
FAQ
Q: Can I purchase samples?
A: Small batch samples of 1–50pcs are supported.
Q: What types of cameras do you manufacture?
A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:
Embedded cameras for face/object/barcode recognition
Industrial cameras for automated inspection and measurement
Security vision cameras for surveillance and monitoring.
Q: Can you customize cameras?
A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)
Q: How is the quality control?
A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.
Q: What is the lead time?
A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
