2MP Wide-angle USB Camera Waterproof Lens UVC Plug-and-play Driver-free Mini Webcam

2MP Wide-angle USB Camera Waterproof Lens UVC Plug-and-play Driver-free Mini Webcam

Brand Name: HCVsight
Model Number: HCU-FKQJ202
MOQ: 50 pieces
Price: US$36.39/50~199 pieces US$34.59/200~499 pieces US$32.89/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Detail Information
Place of Origin:
ShenZhen,China
Pixel:
2mp
Lens Type:
(210°)Customizable
Compatibility:
Windows/Mac OS/Linux/Android
Sensor Type:
CMOS
Color:
Black
Waterproof Lens:
IP68
Interface:
USB2.0
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/pieces/mouth
Highlight:

2MP USB camera for Windows Mac

,

30fps USB webcam with CMOS sensor

,

22mmx22mm USB camera for video calls

Product Description

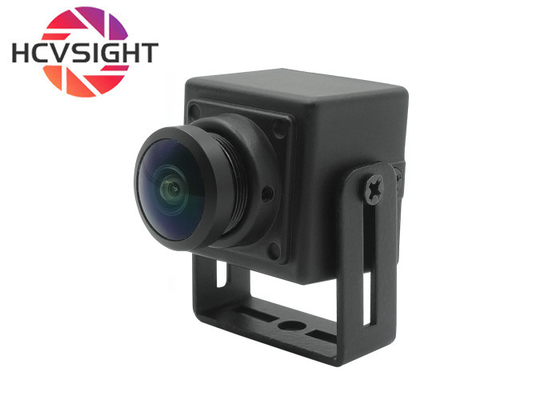

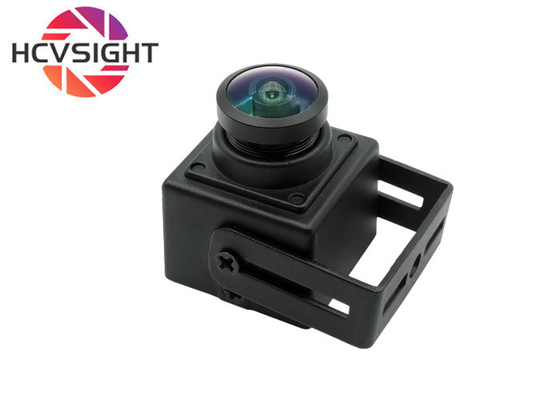

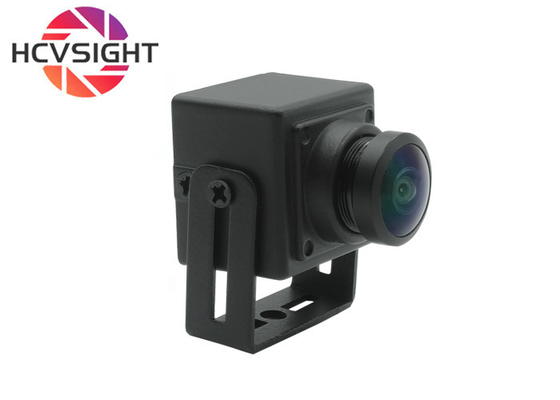

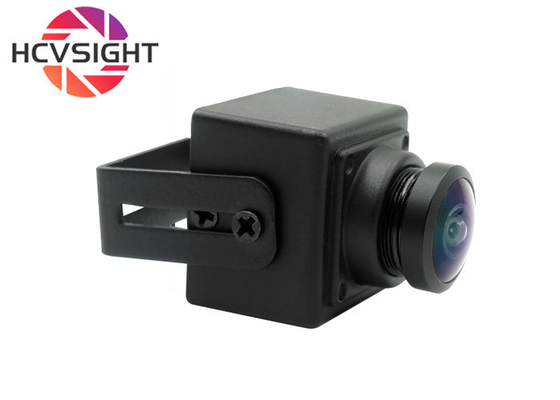

2MP Wide-angle USB Camera Waterproof Lens UVC Plug-and-play Driver-free Mini Webcam
Product Introduction
This 2MP ultra wide angle USB camera is an industrial grade visual solution designed specifically for special environments. It combines 210 ° ultimate wide-angle, IP68 top waterproof, and sturdy metal casing, providing stable and reliable video capture capabilities with a compact body (20x20mm). Adopting advanced UVC protocol, plug and play without drivers, it can quickly be compatible with multiple systems. Whether it is a damp and dusty industrial site or a complex scene that requires panoramic monitoring, it can easily handle it, providing you with clear, stable, and no dead angles in video footage.
Product functions and features

2MP high-definition picture quality: Provides a resolution of 2 megapixels (1080P full HD), with clear and smooth picture quality.
210 ° ultra wide angle IP68 top waterproof lens: Its core advantage lies in the 210 ° diagonal ultra wide angle lens, which can cover a huge range with almost no blind spots. One camera can monitor the entire room, perfectly avoiding blind spots in the field of view, making it very suitable for installation environments with limited space. Adopting professional grade IP68 protection standard, this means that it can cope with various extremely humid and dusty harsh environments such as rainwater erosion, high temperature steam, underwater shooting, etc., with extremely high reliability.
All metal sturdy shell: Made of high-quality metal shell, it not only has outstanding texture, but also has excellent impact resistance, compression resistance and heat dissipation performance, effectively protecting internal precision components and greatly extending product service life. It is suitable for industrial, automotive and other applications with high vibration.
UVC protocol plug and play: fully compatible with UVC protocol, driver free installation can be achieved on mainstream operating systems such as Windows, macOS, Linux, Android, etc. Inserting the USB port of the device can be recognized as a video device, without the need for complex settings, greatly simplifying the deployment process.
Mini size and flexible installation: The 20x20mm mini size allows it to be installed almost anywhere, taking up no space and being highly concealed.

Parameter Specification
Sensor 1/2.9"
Resolution 2MP
Compression Format MJPG/YUV2
Frame Rate 1920×1080 @30fps
Audio Support optional
Operating Voltage DC 5V
White Balance Automatic
Operating Temperature <70°C
Power Consumption 0.25W
Lens Specifications EFL:1.5mm, F.ON:2.0, Distortion: <-17%, Element:2G+IR, Angle:D=210° H=210° V=120°
Chip Type CMOS
Supported OS WinXP/Mac OS/Linux/Win7/Win8/Win10/Android
Application Scenarios
Its sturdy, waterproof, and ultra wide angle characteristics make it shine in professional fields and special consumer scenarios:
Industrial Inspection and Automation: Installed on production lines, equipment interiors, or robots for visual inspection and process monitoring, fearless of coolant, oil, and dust.
Vehicle monitoring and recording: As a driving recorder, in car monitoring or reversing camera, the metal shell is heat-resistant.
Smart home security: used for security monitoring or caring for the elderly and children, without worrying about water vapor damage.
Video conferencing and live streaming: providing panoramic views for small meeting rooms to capture all attendees.
Customization Options
Brand: HCVsight
Model: HCU-FKQJ202
Origin: Shenzhen, China
MOQ: Negotiable
Delivery: 2-3 weeks
  • We offer comprehensive OEM/ODM customization services to meet specific application requirements:
    • Lens customization: Specific focal length, field of view angle, distortion control
    • Casing customization: Dedicated casing, bracket, or mounting solutions
    • Cable and interface: Custom lengths and connector types (USB, Type-C)
    • Resolution options: Higher pixel models available (4MP, 5MP, 8MP, 12MP)
    • Module types: USB camera, AHD camera, CVBS camera, wired webcam, wireless WiFi camera modules
Support & Services
Our product comes with comprehensive technical support, including installation assistance, firmware updates, and product training. We provide detailed user manuals and ongoing software upgrades to ensure optimal performance.
