2MP Wide-angle USB Camera With Waterproof Fisheye Lens UVC Mini Metal Box Design

2MP Wide-angle USB Camera With Waterproof Fisheye Lens UVC Mini Metal Box Design

Brand Name:	HCVsight
Model Number:	HCU-FKQJ202
MOQ:	50 pieces
Price:	US$36.39/50~199 pieces US$34.59/200~499 pieces US$32.89/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Pixel:

2mp

Lens Type:

210°（Customizable）

Compatibility:

Windows/Mac OS/Linux/Android

Sensor:

1/2.9”CMOS

Color:

Black

Size:

22x22mm

Interface:

USB2.0

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

2MP USB camera for Windows Mac

30fps USB webcam with CMOS sensor

22mmx22mm USB camera for video calls

Product Description

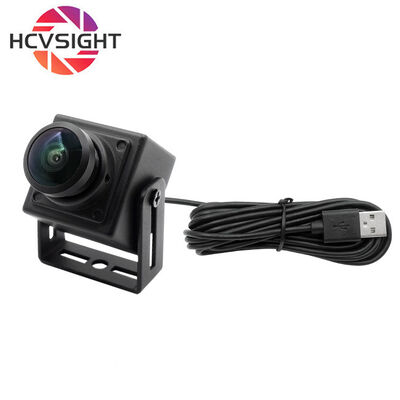

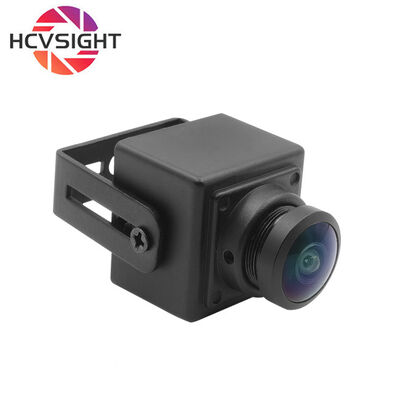

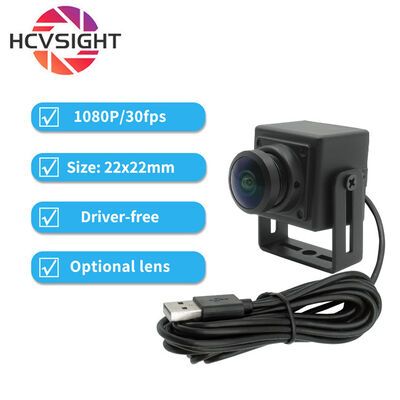

2MP Wide-angle USB Camera With Waterproof Fisheye Lens UVC Mini Metal Box Design

This industrial-grade 2MP USB wide-angle waterproof camera features a 210° fisheye panoramic waterproof lens, providing ultra-wide-angle field of view. With its compact 22×22 mm metal housing and driverless UVC USB interface, it's plug-and-play and compatible with Windows, Linux, macOS, and Android operating systems. It's designed for applications requiring reliable image acquisition, ultra-wide-angle coverage, and stable performance in harsh environments.

Product functions and features

• 2MP Full HD 1080P Imaging: Utilizes a high-sensitivity 2MP sensor optimized for USB camera modules and machine vision cameras, supporting 1080P 30fps and stable output of MJPG/YUV2 format images.

• 210° Ultra-Wide-Angle Fisheye Lens: This wide-angle USB camera provides panoramic coverage, crucial for vehicle vision, warehouse automation, security monitoring, and smart access control systems. Its high-precision fisheye optics system delivers excellent edge-to-edge sharpness for wide-angle surveillance cameras and robot navigation cameras.

• Plug and Play UVC Driverless: Ready to use without installing drivers. It integrates seamlessly with Windows, Linux, and Android systems.

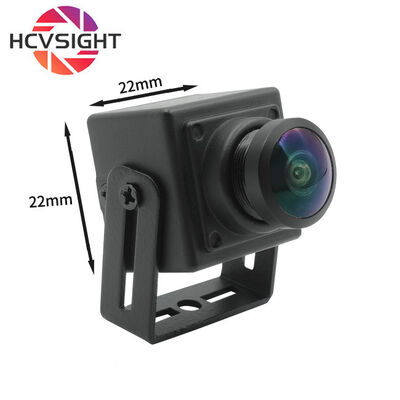

• Compact 22×22mm Metal Housing: Its mini USB camera module size allows for flexible installation within industrial machinery, display terminals, self-service kiosks, vehicle dashboards, and automation systems. The metal housing improves heat dissipation and enhances long-term stability.

Technical Specifications:

Parameter	Specification
Sensor	1/2.9"CMOS
Resolution	2MP
Compression Format	MJPG/YUV2
Frame Rate	1920×1080 @30fps
Audio Support	optional
Operating Voltage	DC 5V
White Balance	Automatic
size	22X22mm
Product Model	HCU-FKQJ202
Operating Temperature	<70°C
Power Consumption	0.25W
interface	USB2.0
Lens Specifications	EFL:1.5mm, F.ON:2.0, Distortion: <-17%, Element:2G+IR
FOV	210°
Supported OS	WinXP/Mac OS/Linux/Win7/Win8/Win10/Android

Application Scenarios

Its sturdy, waterproof, and ultra wide angle characteristics make it shine in professional fields and special consumer scenarios:
Industrial Inspection and Automation: Installed on production lines, equipment interiors, or robots for visual inspection and process monitoring, fearless of coolant, oil, and dust.
Vehicle monitoring and recording: As a driving recorder, in car monitoring or reversing camera, the metal shell is heat-resistant.
Smart home security: used for security monitoring or caring for the elderly and children, without worrying about water vapor damage.
Video conferencing and live streaming: providing panoramic views for small meeting rooms to capture all attendees.

Customization Options

We offer comprehensive OEM/ODM customization services to meet specific application requirements:
- Lens customization: Specific focal length, field of view angle, distortion control
- Casing customization: Dedicated casing, bracket, or mounting solutions
- Cable and interface: Custom lengths and connector types (USB, Type-C)
- Resolution options: Higher pixel models available (4MP, 5MP, 8MP, 12MP)
- Module types: USB camera, AHD camera, CVBS camera, wired webcam, wireless WiFi camera modules

FAQ

Q: Can we purchase samples?

A: Sure, we offer flexible procurement and samples: sample procurement (1-50 pieces) supports rapid testing and reduces development risks. Bulk purchases can enjoy price tiered discounts and support long-term cooperation.

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring.

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

About our more products:Huachuang Finished Product List.xls

Lens specification sheet:Panoramic lens specification sheet.pdf
