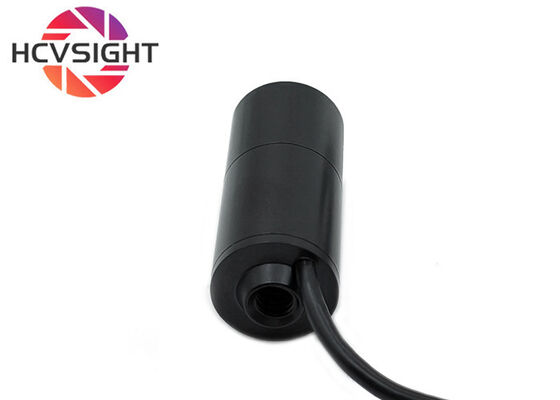

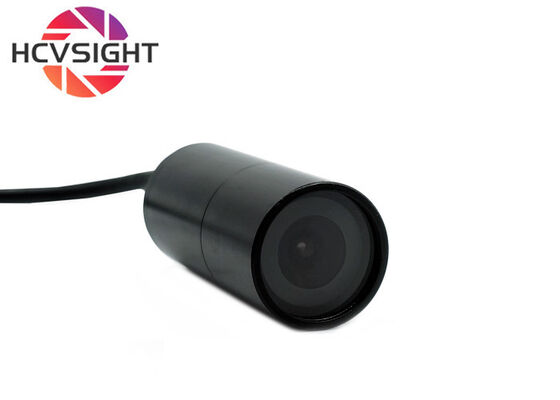

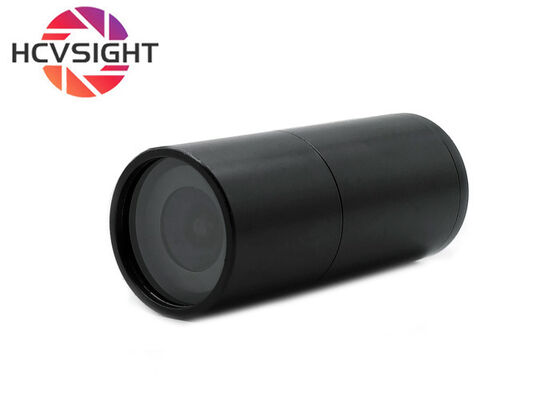

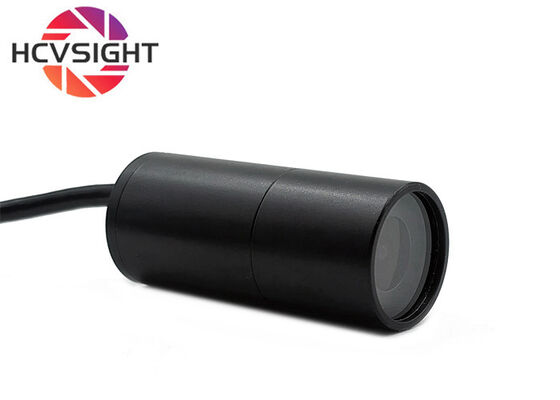

Mini Bullet Camera 720P 30fps UVC Driver-free For Android Phone And Windows

Mini Bullet Camera 720P 30fps UVC Driver-free For Android Phone And Windows

Brand Name: HCVsight
Model Number: HCU-BT181TPC
MOQ: 50 pieces
Price: US$32.69/50~199 pieces US$31.09/200~499 pieces US$29.59/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Detail Information
Place of Origin:
ShenZhen,China
Frame Rate:
30fps
Interface:
Type-c
Pixel:
1mp
Compatibility:
Windows/Mac OS/Linux/Andriod
Product Dimensions:
19mmx43mm
Lens:
90°(Customizable)
Agreement:
UVC
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/pieces/mouth
Highlight:

720p raspberry pi surveillance camera

,

Drive Free raspberry pi surveillance camera

,

30fps raspberry pi security camera

Product Description
Mini Bullet Camera 720P 30fps UVC Driver-free For Android Phone And Windows
Product Introduction
This mini bullet-shaped USB camera module (720P 30FPS) is a compact and durable USB camera module designed for professional applications such as industrial inspection, machine vision, embedded system integration, security monitoring, robotics, and video capture for Android devices. With its ultra-small bullet-shaped housing, stable 30FPS video output, and universal USB plug-and-play design, this USB camera for Android and Windows systems provides reliable image performance for users who require stable output, easy installation, and long-term durability.
Technical Specifications:
Specification Detail
Sensor 1/4"
Pixel 1MP
Compression format MJPG/YUV2
Frame rate 1280x720 30fps
Audio none
Operating voltage DC 5v
Product dimensions

19mmx43mm

White balance Automatic
Operating temperature <70°C
Power consumption 0.25w
Model No HCU-BT181
Interface type Type-C
Lens EFL:3mm
F.ON:2.2
Distortion: <-1.0%
Element:4E+IR
FOV 90°
Chip Type CMOS
Supported OS WinXP/Mac OS/Linux/Win7/Win8/Win10/Android
Product functions and features
720P high-definition smooth picture quality: equipped with a 1 million pixel high-definition sensor, supporting 1280x720 resolution video output, and presenting images at a smooth frame rate of 30fps.
Classic mini bullet design: The product size is only 19mm x 43mm (diameter * length), exquisite and slender, like a "bullet". Not only is it beautiful and elegant, but it also saves space, is easy to install and fix, and can flexibly adapt to various usage environments.
Equipped with a 3mm lens: providing a diagonal view of approximately 90 °. This perspective can achieve a good balance between individual close ups and group photos, easily covering areas such as the desktop and a corner of the room.
Adopting cutting-edge Type-C (USB-C) interface: front and back blind insertion, convenient connection. Directly connect to Android phones, tablets, or Windows laptops with a C port, eliminating the hassle of traditional USB-A adapters and making the connection more direct and efficient.
Plug and play, no drive installation: No driver installation is required on most Windows systems (such as Windows 10/11) and Android systems, and it can be automatically recognized upon connection.
Customization Options
  • We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
    1. Lens customization: specific focal length, field of view angle, distortion control.
    2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
    3. Cable and Interface: Customize cable length and interface type.
    4. Pixel customization: Different resolution and frame rate models are available.
Product application scenarios
Intelligent video conferencing system: embedded in conference tablets, video conferencing strips, laptops, achieving 4K high-definition picture quality, automatic focusing to ensure clear facial features of speakers, and eye contact function to make remote communication more immersive.
AI facial recognition and access control: applied to smart door locks, attendance machines, and access control systems, high resolution improves recognition accuracy, and automatic focusing adapts to users of different heights.
Embedded machine vision: integrated into automation equipment, microscopes, drones, medical instruments, for industrial automation tasks such as size measurement, defect detection, positioning guidance, etc.
Advanced security monitoring: As a concealed high-definition monitoring module, embedded in smart home devices such as smart speakers and televisions, it provides inconspicuous high-definition security monitoring.
Online Education and Live Streaming: Providing compact audio and video solutions for high-quality online education platforms and live streaming equipment, enhancing the quality of teaching and interaction.
Why Choose our USB Camera?
  • OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
  • Industrial grade reliability: ensuring stability during long-term operation.
  • Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
  • Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
  • Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

FAQ

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

Mini Bullet Camera 720P 30fps UVC Driver-free For Android Phone And Windows 0 Mini Bullet Camera 720P 30fps UVC Driver-free For Android Phone And Windows 1
