High Stability 2MP USB Camera Module Suitable For Industrial Monitoring

High Stability 2MP USB Camera Module Suitable For Industrial Monitoring

Brand Name: HCVsight
Model Number: HC-MU2MP3.6-28
MOQ: 50 pieces
Price: US$29.89/50~199pieces US$28.39/200~499pieces US$24.06/500~999pieces
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Detail Information
Place of Origin:
ShenZhen,China
Audio:
Support
Sensor Size:
1/2.9''CMOS
Color:
Black
Lens:
3.6mm(optional)
Dimensions:
28mmx28mm
Pixel:
2MP
Compatibility:
Windows/Mac OS/Linux/Andriod
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/pieces/mouth
Highlight:

2MP USB Camera Module

,

High Definition USB Camera Module

,

1/2.9'' oem usb camera module

Product Description

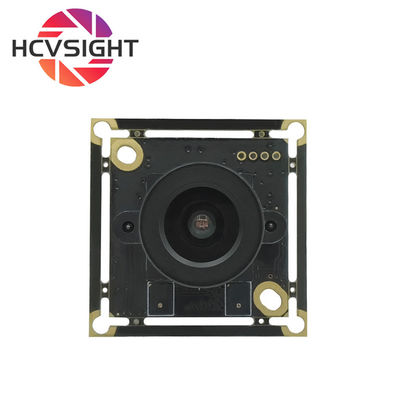

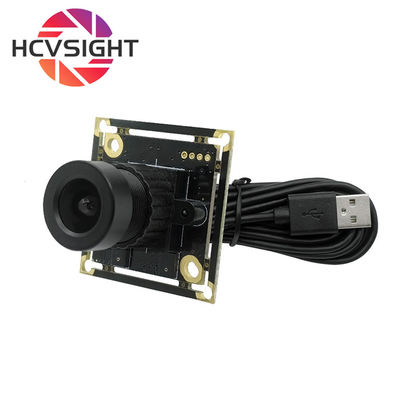

High Stability 2MP USB Camera Module Suitable For Industrial Monitoring
Product Introduction
Our 2MP USB Camera Module is purpose-built for machine vision, industrial inspection, AIoT devices, robotics, and automation terminals requiring stable Full HD imaging.Equipped with a 1/2.9'' CMOS sensor, this module delivers 1920×1080@30fps with excellent color reproduction, low image noise, and reliable performance under long-term operation.This model supports UVC plug-and-play, enabling fast integration with Windows / Linux / Android without additional drivers—ideal for B2B applications, mass production, and OEM customization.
Technical Specifications
Parameter Specification
Sensor 1/2.9"CMOS
Pixel 2MP
Compression format MJPG/YUV2
Frame rate 1920X1080 30fps
Audio Support
Operating voltage DC 5v
Product dimensions 28mm x 28mm
White balance Automatic
Operating temperature <70°
Power consumption 0.25w
Model No HC-MU2MP3.6-28
Interface type USB2.0
USB cable length 2m(customizable)
FOV 90 Degree
Operating Systems   Windows / Linux / Android / macOS

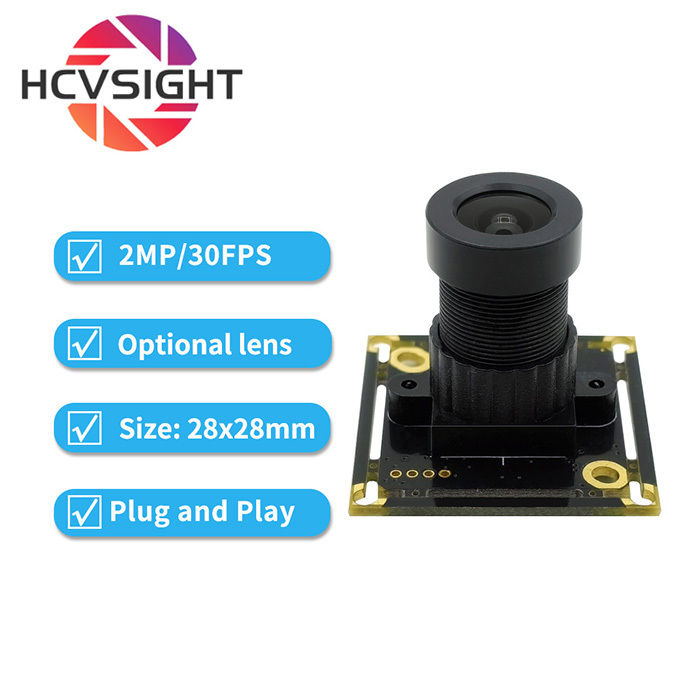

Product functions and features
2MP HD Pixels: using advanced CMOS sensors, supporting up to 1920x1080@30fps Resolution, providing detailed and sharp high-definition images to meet the needs of precise recognition and detection.

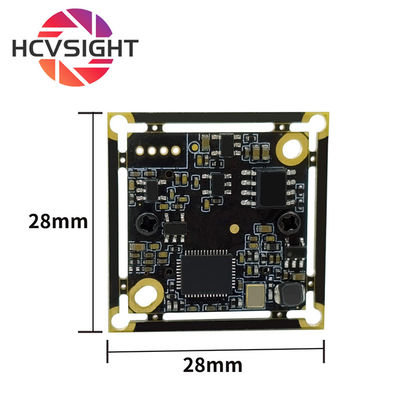

Ultra small size (28x28mm): The extremely exquisite PCB board design saves space and provides great flexibility for the internal structure design of the product, making it perfect for embedded devices with strict size requirements.
Smooth frame rate: Supports smooth output at 30fps in 1080P full HD mode, ensuring no ghosting or delay in dynamic images, suitable for tracking and analyzing moving objects.
USB 2.0 high-speed interface: Standard USB interface, plug and play, strong compatibility, can easily connect various development boards and smart terminals such as PCs and laptops.
High compatibility driver: Supports UVC protocol and can run without installing additional drivers on various operating systems such as Windows, Linux, Android, Mac OS, etc.
Customization Options
  • We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

    1. Lens customization: specific focal length, field of view angle, distortion control.
    2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
    3. Cable and Interface: Customize cable length and interface type.
    4. Pixel customization: Different resolution and frame rate models are available.
Product application areas
Machine Vision and Industrial Automation: Dimensional Measurement, Product Positioning, QR Code/Barcode Recognition, Defect Detection, Automated Production Line Quality Control.
Artificial intelligence and educational research: facial recognition, gesture recognition, object tracking, machine learning model training, robotics.
Intelligent office and security monitoring: high-definition video conferencing system, facial recognition access control/attendance machine, smart doorbell, small monitoring equipment.
Medical and biometric: portable medical device imaging, microscope assisted imaging, iris recognition.
Intelligent retail and the Internet of Things (IoT): smart vending cabinets, customer flow tracking systems, behavior analysis, and the "eyes" of IoT devices.
Embedded and consumer electronics: integrated into drones, intelligent robots, AR/VR devices, and in vehicle assistance systems as visual input unit.
Why choose our USB camera module?
  • Plug and play: Lowering the development threshold and quickly integrating into the system.
  • OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
  • Industrial grade reliability: ensuring stability during long-term operation.
  • Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
  • Flexible procurement and samples: Sample procurement (1-10 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
  • Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

FAQ

Q: Can I purchase samples?

A: Small batch samples of 1–50pcs are supported.

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring.

Q: Which industries do you serve?

A: Our cameras are widely used in:

✔ Industrial automation (defect detection, robotics)

✔ Smart security (facial recognition, access control)

✔ Retail/logistics (barcode scanning, inventory management)

✔ Medical equipment and traffic monitoring

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
