Mini 15x15mm Full HD 720P USB Camera with Zero Distortion Lens External Camera

Name: Mini 15x15mm Full HD 720P USB Camera with Zero Distortion Lens External Camera
Brand: Shenzhen Huachuang Micro Vision Technology Co., Ltd.
SKU: HCU-WJB151
Price: 28.79 USD
Availability: InStock

Brand Name:	HCVsight
Model Number:	HCU-WJB151
MOQ:	50 pieces
Price:	US$31.79/50~199 pieces US$30.29/200~499 pieces US$28.79/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Pixel:

1mp

Compatibility:

Windows/Mac OS/Linux/Andriod

Frame Rate:

30fps

Color:

Black

Product Dimensions:

15mmx15mm

Sensor Type:

CMOS

Sensor Size:

1/4''

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

720p Resolution USB Camera

80° Field of View Mini USB Webcam

High Color Reproduction Document Scanning Camera

Product Description

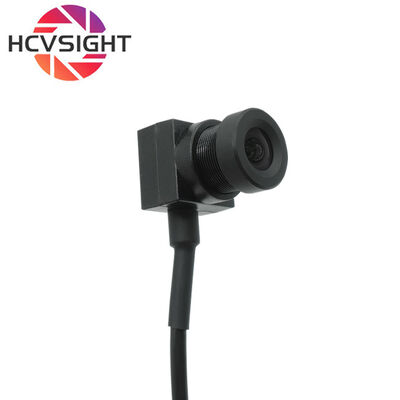

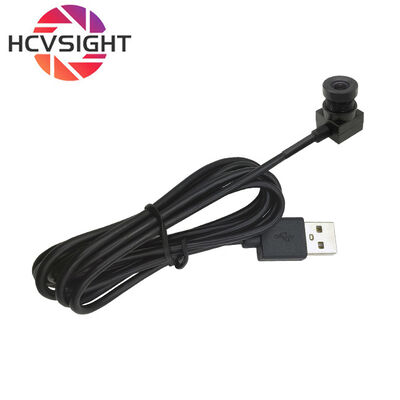

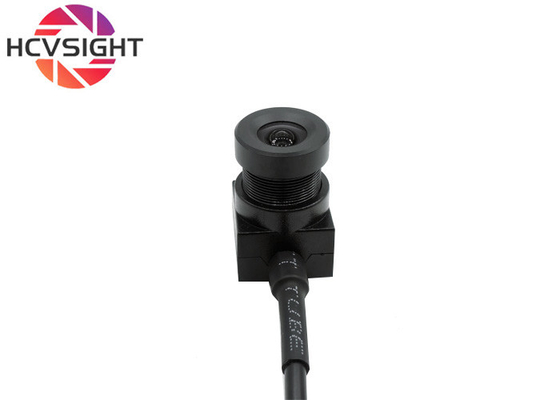

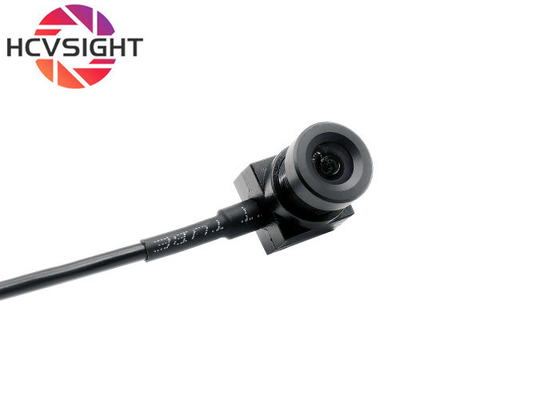

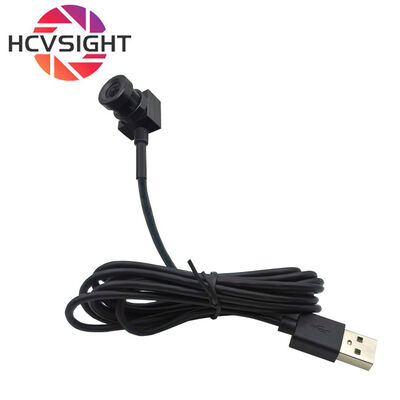

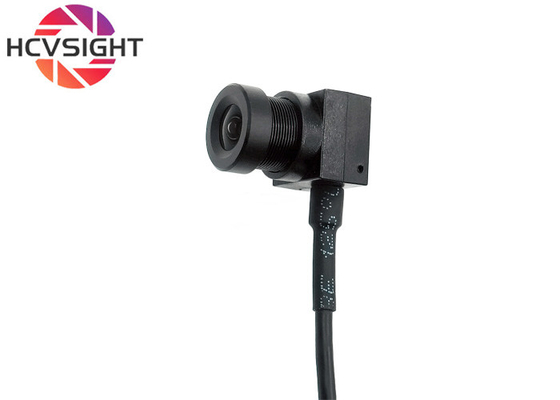

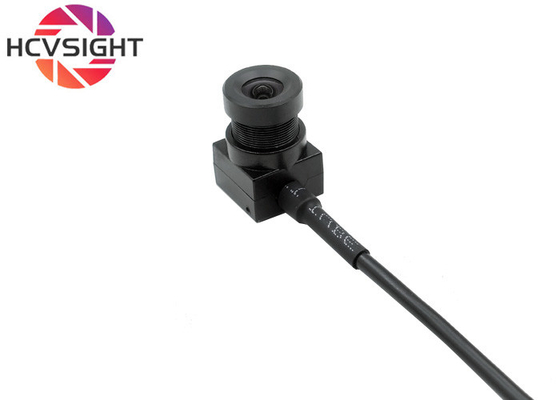

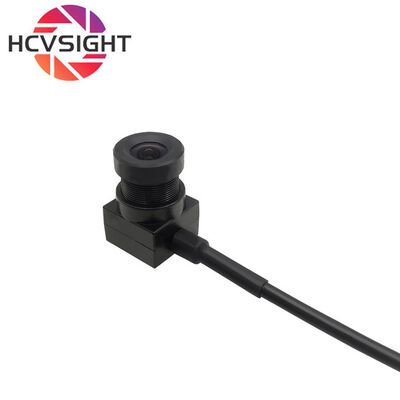

Mini 15x15mm Full HD 720P USB Camera with Zero Distortion Lens External Camera

This ultra miniature USB camera, measuring only 15x15mm, is a perfect combination of engineering and optical technology. It uses high-quality 1/4 inch chips to provide true 720P/1 million pixel full HD image quality, and is exclusively equipped with a 3.6mm distortion free lens, bringing a 95 ° distortion free viewing angle. With its ultimate mini size and "what you see is what you get" precise imaging capability, it is designed for application scenarios that have strict requirements for spatial and image authenticity, making it an ideal choice for embedding smart devices and conducting precise visual analysis.

Technical Specifications

Sensor	1/4"
Pixel	1MP
Compression Format	MJPG/YUV2
Frame Rate	1280*720 @ 30fps
Audio	Supported
Power	DC 5V
Product Size	15mm×15mm
White Balance	Automatic
Working Temperature	<70°C
Power Consumption	0.25w
Model	HCU-WJB151
Interface Type	USB2.0
Night Vision	Not supported
Lens Specifications	Effective length: 3mm Focal length: 2.2 Distortion: <-1.0% Component: 4E+IR Angle: D=95° H=83° V=55°
Chip Type	COMS
Supported OS	WinXP/Mac OS/Linux/Win7/Win8/Win10/Android

Key Features

Ultimate Mini, Invisible Installation: With a 15x15mm ultra compact design, it is the industry's benchmark for mini installations and can seamlessly integrate into various devices and small spaces, achieving highly integrated invisible installation.
True HD picture quality, details are fully displayed: equipped with a 1/4 inch sensor, providing a 720P high-definition output of 1 million pixels, the picture is smooth and delicate, ensuring clear and distinguishable details.
Distortion free lens, authentic restoration: Using a special 3.6mm optical lens, providing a 95 ° distortion free viewing angle, the straight lines in the image are realistically restored, ensuring geometric accuracy and optimized for machine vision.
Plug and play, widely compatible: standard USB 2.0 interface, drive free, fully compatible with mainstream systems and development boards such as Windows, macOS, Linux, and Raspberry Pi.
Low power design: Optimize the circuit to achieve ultra-low power consumption, which can be directly powered by a computer USB port or a portable power bank, tailored for portable and embedded devices

Product application scenarios

Machine vision and industrial inspection: integrated into automation equipment for precise positioning, size measurement, defect detection, etc. Distortion free lenses are a prerequisite for ensuring measurement accuracy.
Intelligent hardware and embedded development: Built in "eyes" for intelligent robots, drones, and interactive terminals, its compact size leaves more space for overall structural design.
High end security and covert monitoring: suitable for security scenarios that require extremely concealed installation, such as smart doorbells, confidential cabinets, special area monitoring, etc.
Scientific research and medical equipment: As an image acquisition module for microscopes or experimental instruments, it is used for biological observation, sample analysis, etc., requiring images to be true and deformation free.
High quality video calling and live streaming: As an external camera, it provides a clearer and more distortion free video calling experience for computers or smart TVs than the built-in camera.
Education and Maker Project: It is an ideal experimental tool for learning image processing and artificial intelligence (such as facial recognition and object tracking).

Customization Options

Brand: HCVsight
Model: HCU-WJB151
Origin: Shenzhen, China
MOQ: Negotiable
Delivery: 2-3 weeks
Packaging: Anti-static carton bag (110mm×93mm×41mm)

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type (such as type-c and Android).
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Technical Support & Services

Comprehensive product documentation and user manuals
Email and phone technical support
Remote desktop assistance
Product training and customized solutions

Lens specification sheet:Specification for 3.6mm undistorted lens.pdf

About our more products:Huachuang Finished Product List.xls
