Type C Mini USB Camera HD 720P Bullet CCTV Security Camera For Android Linux

Brand Name:	HCVsight
Model Number:	HCU-BT201TPC
MOQ:	50 pieces
Price:	US$35.29/50~199 pieces US$33.59/200~499 pieces US$31.89/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Pixel:

1mp

Compatibility:

Windows/Mac OS/Andriod/Linux

Color:

Black

Sensor:

1/4”CMOS

Working Voltage:

DC 5V

Interface Type:

Type-c

Agreement:

UVC

Size:

20mmX80mm (Base Size Not Included)

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

1MP barrel camera

Pen barrel camera

30fps canon surveillance camera

Product Description

Type C Mini USB Camera HD 720P Bullet CCTV Security Camera For Android Linux

This Type-C mini UVC bullet camera features a 1-megapixel 1280×720 CMOS sensor, supports 30fps real-time output, uses a USB-C interface for plug-and-play functionality, and supports Android, Windows, Linux, and macOS systems. Its rugged, durable metal bullet-shaped casing is heat-resistant and interference-resistant, ensuring stable operation during extended use, continuous data streaming, and harsh environments.

Technical Parameters:

Sensor	1/4"CMOS
Pixel	1MP
Compression format	MJPG/YUV2
Frame rate	1280x720 30fps
Operating voltage	DC 5v

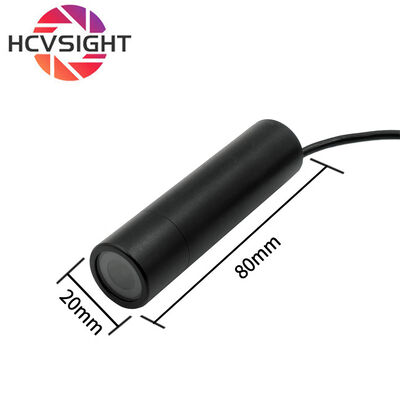

Product dimensions	20mmX80mm (Base size not included)
White balance	Automatic
Operating temperature	<70°
Power consumption	0.25w
Model No	HCU-BT201TPC
Interface type	Type-c
Night vision function	Not supported
Lens	EFL:3mm F.ON:2.2 Thread size:M12 Element:4E+IR
FOV	90°
Support OS	WinXP/Mac OS/Win7/Win8/Win10/Android/Linux

Product functions and features:

UVC Plug and Play Camera: Driver-free, supports Windows/Mac/Linux systems; automatically recognizes compatible Android OTG devices.

1MP 720p HD Resolution: Provides clear 1280×720 video, optimized for close-range detection and real-time monitoring.

USB-C Mini Camera Design: Supports modern industrial tablets, handheld terminals, and embedded devices.

Metal Bullet-Shaped Housing: Offers enhanced protection, thermal stability, and long-term durability.

OEM/ODM Support: Customizable cable length, field of view, lens type, housing color, and firmware.

Application Scenarios

Ideal for machine vision and equipment monitoring applications including: ATM machines, banking systems, hospital equipment, printers, vending machines, digital signage, robots, cranes, SMT machines, welding equipment, fire water cannons, law enforcement devices, external cameras for Android phones, computer cameras, security surveillance, boiler flame monitoring, identity verification systems, and height measurement devices.

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

FAQ

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
