2-megapixel 1080P 2.1mm Wide-angle USB Camera Suitable For Machine Vision

Brand Name:	HCVsight
Model Number:	HCU-FK252AZ
MOQ:	50 pieces
Price:	US$34.19/50~199 pieces US$32.49/200~499 pieces US$30.89/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Pixel:

2mp

Frame Rate:

1920x1080@30fps

Lens:

120°（Customizable）

Sensor Type:

Andriod

Product Size:

25mmX25mm

Compatibility:

Windows/Mac OS/Linux/Andriod

Power:

DC 5V

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

2MP USB camera with 2.1mm lens

1080P USB camera 25x25mm

USB webcam with high-resolution video

Product Description

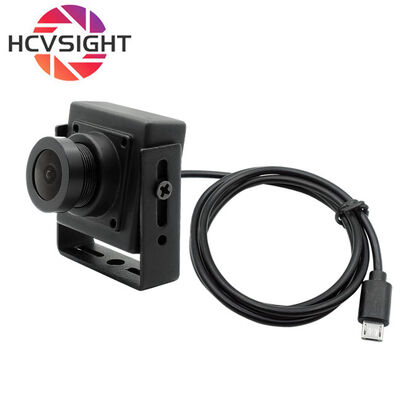

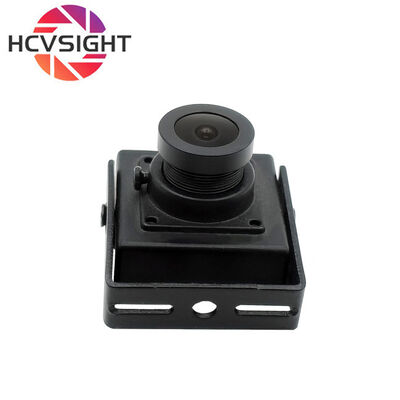

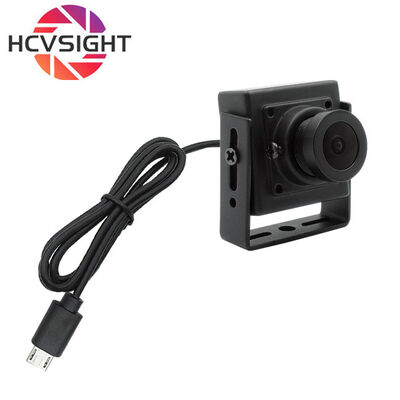

2-megapixel 1080P 2.1mm Wide-angle USB Camera Suitable For Machine Vision

This 2MP 1080P USB camera features a 2.1mm wide-angle 120° lens, delivering clear Full HD images, making it ideal for applications such as machine vision, industrial automation, robotics, AI terminals, and self-service terminals. Its compact 25x25mm square metal housing combines excellent heat dissipation and durability, and utilizes a universal OTG interface (compatible with Android devices) for plug-and-play functionality and flexible installation. Designed for OEMs and embedded systems, this industrial-grade USB camera boasts excellent low-light performance, a high signal-to-noise ratio, and stable plug-and-play functionality on Windows, Linux, Android, and Mac platforms, while also being compatible with the UVC protocol.

Key Features

2MP HD resolution: 1920x1080 at 30fps for crisp, detailed imaging.
Ultra-wide 120° field of view: 2.1mm lens captures expansive scenes.

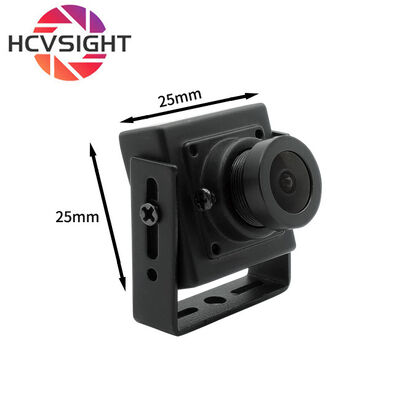

Compact metal housing: 25x25mm design with superior heat dissipation.
Universal OTG interface: Plug-and-play compatibility with Android, Windows, MacOS, and Linux.

Technical Specifications

Parameter	Value
Sensor	1/2.9" CMOS
pixel	2MP
Resolution	(1920x1080)@30fps
Lens	FOV:120°
Interface	Android
Power	5V DC, 0.25W consumption
Operating Temperature	<70°C
Dimensions	25mmx25mm
Supported OS	Windows, MacOS, Linux, Android

Customization Options

We offer comprehensive OEM/ODM services to meet specific application requirements:

Lens customization (focal length, FOV, distortion control)
Custom housing and mounting solutions
Variable cable lengths and interface types
Higher resolution options (4MP, 5MP, 8MP,12MP,16MP)

FAQ

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

About our more products:Huachuang Finished Product List.xls

Lens specification sheet:2.1mm Wide Angle Lens Specification.pdf
