UVC OTG Camera 1080p Mini USB Camera In Metal Case For Android Devices

UVC OTG Camera 1080p Mini USB Camera In Metal Case For Android Devices

Brand Name:	HCVsight
Model Number:	HCU-FK202AZ
MOQ:	50 pieces
Price:	US$35.99/50~199 pieces US$34.19/200~499 pieces US$32.49/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Pixel:

2mp

Resolution:

1920x1080p@30fps

Lens:

120°（Customizable）

Interface Type:

Android

Product Dimensions:

22mmX22mm

Compatibility:

Windows/Mac OS/Linux/Andriod

Power Supply:

DC 5V

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

22mmX22mm USB Camera

Customizable Lens Mini USB Camera

Android Interface Industrial Surveillance Camera

Product Description

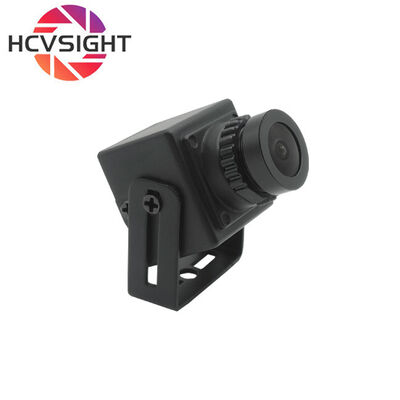

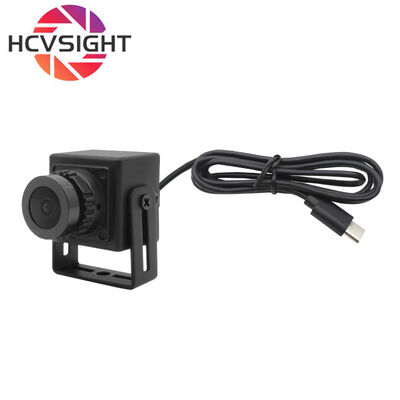

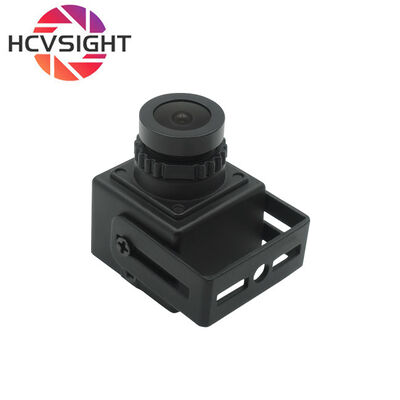

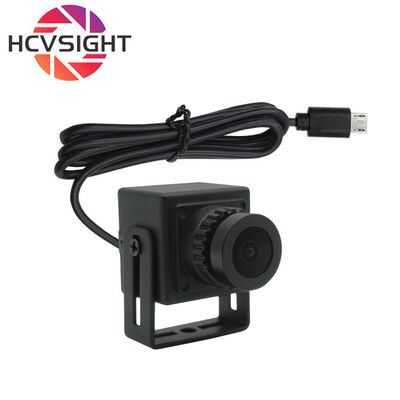

UVC OTG Camera 1080p Mini USB Camera In Metal Case For Android Devices

This 1080p 2MP mini USB camera features 2 megapixels, supports 1080p Full HD video output, and is equipped with a 2.1mm wide-angle 120° lens for capturing a wider field of view. Its compact square design, measuring only 22×22mm, and metal casing not only make it aesthetically pleasing but also provide excellent heat dissipation and anti-interference capabilities. The plug-and-play design requires no driver installation and is compatible with most mainstream Android devices, making it an ideal solution for mobile video capture, video conferencing, and content creation.

Key Features

2.1mm wide-angle lens provides 120° viewing angle
Plug and play, widely compatible: Supports Android (OTG) and PC systems such as Windows/Linux/macOS, conforms to UVC standards, requires no additional drivers, and facilitates quick and easy deployment.
High-definition image quality: 2MP sensor + 1080p video output + 2.1mm wide-angle lens delivers clear and stable image quality, suitable for video calls, monitoring, image recognition, machine vision, and other scenarios.
Lightweight modular design: Mini size + Android interface + flexible cable, easy to embed in devices (such as industrial equipment, robots, drones, IoT terminals) or directly as a USB webcam.

Technical Specifications

Sensor	1/2.9"CMOS
Pixel	2MP
Compression format	MJPG/YUV2
Frame rate	1920x1080 30fps
Audio	none
Operating voltage	DC 5v
Product dimensions	22x22mm
Product Model	HCU-FK202AZ
Operating temperature	<70°C
Power consumption	0.25w
Interface	Android
Lens	EFL:2.8mm, F.ON:2.1, Distortion: <-1.0%, Element:4G+IR,
FOV	120°
Supported OS	WinXP/Mac OS/Linux/Win7/Win8/Win10/Android

Applications

Ideal for various machine vision and equipment monitoring applications including:

ATM machines and banking systems
Medical equipment and hospital systems
Vending machines and kiosks
Industrial automation (welding equipment, pick-and-place machines)
Security surveillance systems
Embedded systems and IoT devices

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

FAQ

Q: Can I purchase samples?

A: Small batch samples of 1–50pcs are supported.

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring.

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

About our more products:Huachuang Finished Product List.xls

Lens specification sheet:2.1mm Wide Angle Lens Specification.pdf
