Mini USB Camera 1080p OTG Android Camera For Android Phones And Tablets

Mini USB Camera 1080p OTG Android Camera For Android Phones And Tablets

Brand Name: HCVsight
Model Number: HCU-FK352AZ
MOQ: 50 pieces
Price: US$36.99/50~199 pieces US$35.19/200~499 pieces US$31.69/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Detail Information
Place of Origin:
ShenZhen,China
Pixel:
2mp
Frame Rate:
30fps
Lens Type:
90°(Customizable)
Interface Type:
Android
Product Dimensions:
35mmX35mm
Compatibility:
Windows/Mac OS/Linux/Andriod
Frame Rate:
1920X1080 30fps
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/pieces/mouth
Highlight:

2MP USB micro camera for ATM

,

35mmX35mm USB camera 30fps

,

ATM machine USB micro camera

Product Description

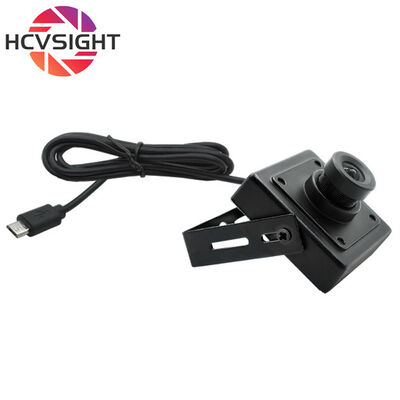

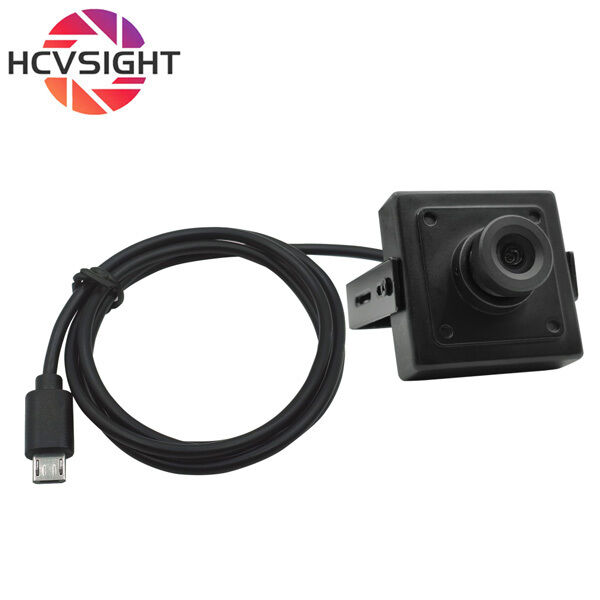

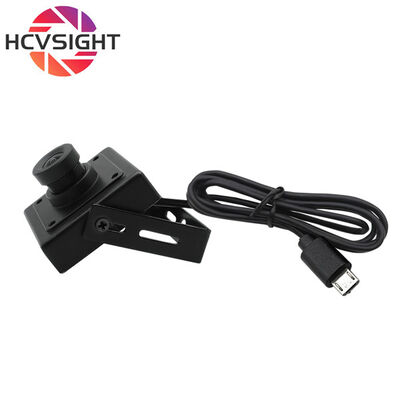

Mini USB Camera 1080p OTG Android Camera For Android Phones And Tablets

This is an Android USB camera designed specifically for modern mobile smart living. It features a sturdy metal mini box casing that combines 2 million high-definition graphics with plug and play convenience. The most crucial thing is that it has built-in UVC protocol and supports OTG function, without the need to install complex drivers, it can be directly compatible with the vast majority of Android smartphones, tablets, smart TVs, and Linux computers, instantly turning it into a high-quality external camera system, making it an ideal tool for video calls, online teaching, and mobile creation.

Product functions and features

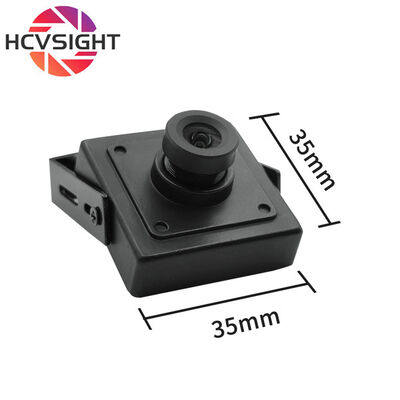

Metal body sturdy heat dissipation: 35x35mm mini metal shell, outstanding texture, sturdy and durable, and conducive to long-term heat dissipation.
High definition picture quality, clear details: 2MP combined with a 1/2.9-inch chip provide clear and sharp images, meeting daily shooting needs.
Distortion free wide-angle lens: The 3.6mm focal length provides a 90 ° viewing angle, a wide field of view, and effective correction of edge distortion, resulting in a realistic and undistorted image.
True UVC OTG Plug-and-Play Compatibility:This OTG USB camera supports the UVC protocol, enabling driver-free operation on most Android devices. Simply connect via USB-A, micro-USB, or USB-C (depending on configuration), and the camera becomes instantly accessible through common UVC apps or custom software.

Technical Specifications
Parameter Value
Sensor 1/2.9"
Pixel 2MP
Compression format MJPG/YUV2
Frame rate 1920*1080 30fps
Audio none
Operating voltage DC 5v
White balance Automatic
Operating temperature <70°C
Power consumption 0.25w
Model No HCU-FK352AZ
Interface type Android
Lens specifications EFL:3mm, F.ON:2.2, Thread size:M12xp0.5, Element:4E+IR,
FOV 90°
Chip Type CMOS
Supported OS WinXP/Mac OS/Linux/Win7/Win8/Win10/Android
Application Scenarios
Ideal for various machine vision and equipment monitoring applications including: ATM machines, bank account opening systems, queuing systems, hospital inspection reports, printers, vending machines, advertising displays, all-in-one systems, electronic scales, robots, cranes, SMT machines, automatic welding equipment, fire water cannons, law enforcement instruments, Android mobile external cameras, computer cameras, security surveillance, coal power boiler flame monitoring, certification equipment, height meters, and other machine equipment integration.
Customization Options

We offer comprehensive OEM/ODM customization services to meet specific application requirements:

  • Lens customization: Specific focal length, field of view angle, and distortion control
  • Custom casing: Dedicated housing, bracket, or mounting solutions
  • Cable and interface options: Custom cable lengths and interface types.
  • Resolution options: Higher pixel models available (4MP, 5MP, 8MP, 12MP)

FAQ

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring.

Q: Which industries do you serve?

A: Our cameras are widely used in:

✔ Industrial automation (defect detection, robotics)

✔ Smart security (facial recognition, access control)

✔ Retail/logistics (barcode scanning, inventory management)

✔ Medical equipment and traffic monitoring

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
