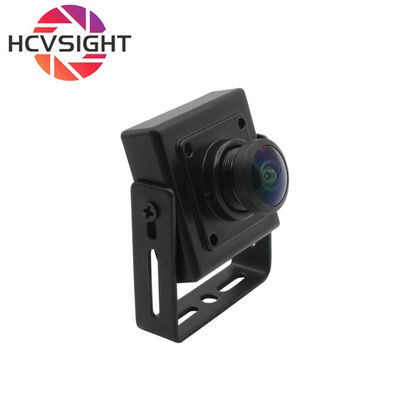

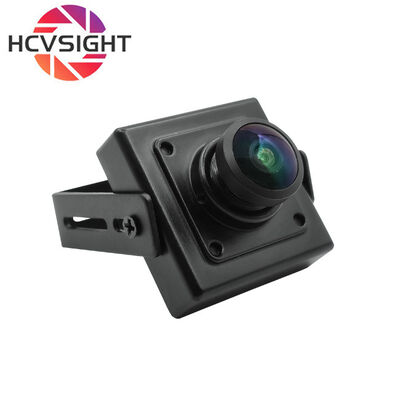

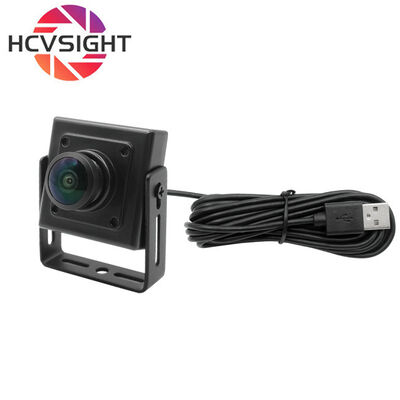

1080p 210° Fisheye Lens Metal Box Mini USB Camera Suitable For Security Monitoring

Brand Name:	HCVsight
Model Number:	HCU-FK302
MOQ:	50 pieces
Price:	US$36.99/50~199 pieces US$35.19/200~499 pieces US$31.69/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，China

Certification:

CE、RoHS、FCC

Power:

DC 5v

Pixel:

2MP

Dimensions:

30mmx30mm

Lens:

210°（Customizable）

Compatibility:

Windows/Mac OS/Linux/Andriod

Frame Rate:

1920x1080@30fps

Sensor:

1/2.9”CMOS

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

30mm 180 degree camera

Panoramic 180 degree camera

2 Million 180 security camera

Product Description

1080p 210° Fisheye Lens Metal Box Mini USB Camera Suitable For Security Monitoring

This 1080p 210° panoramic fisheye mini USB security camera is designed for B2B users and enterprise customers, providing a superior monitoring experience and convenient installation. Whether it's home security monitoring, office security monitoring, retail store monitoring, or real-time monitoring of pets and children's rooms, it can meet your needs. With its plug-and-play USB interface, it supports multi-platform device connections (Android, Windows, macOS, etc.), eliminating the need for complex wiring or professional installation; quick deployment is all it takes to start monitoring.

Key Features

1080p Full HD Video: Delivers crisp, sharp images, ensuring every detail is clearly visible.

210° Ultra-Wide-Angle Fisheye Lens: One camera can cover an entire room, eliminating the need for multiple cameras and significantly reducing costs and wiring complexity.

Mini Metal Box Design: Compact and discreet, suitable for desktop, wall, and ceiling mounting, without affecting the overall aesthetics of the room.

USB Interface for Quick Connection: Plug-and-play design, driverless installation, supports Windows/Android/macOS platforms, and easily integrates with existing devices.

Multi-Scenario Applications: Home security, office monitoring, retail stores, warehouses, pet rooms, children's rooms, or childcare center monitoring, etc.

Technical Specifications

Parameter	Specification
Sensor	1/2.9"CMOS
Resolution	2MP
Frame Rate	1920x1080p@30fps
Interface	USB 2.0

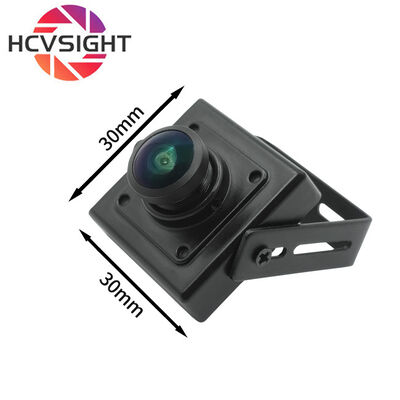

Dimensions	30mmx30mm
Product Model	HCU-FK302
Lens Specifications	F.NO: 2+5%, Focal length:1.5, Distortion: <-17%, Element:5E+IR
FOV	210°
Power	DC 5v
Operating Systems	Windows/Mac OS/Linux/Android

Typical Applications

1: ATM,Kiosk,POS,TV box
2: Advertising cameras
3: Smart TV built-in camera
4: Construction Equipment
5: Banking equipment
6: body switch
7: Scanner
8: a mobile terminal device
9: Medical diagnostic image acquisition
10: fingerprints, palm prints image acquisition
11: video door camera

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type (such as USB and Android).
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP,16MP).

5.Customization Services: USB camera module, AHD camera module, CVBS camera module, wired webcam module, wireless wifi camera module, etc.

Why Choose our USB Camera?

OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
Industrial grade reliability: ensuring stability during long-term operation.
Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

Learn more about our products:Huachuang Finished Product List.xls
Lens specification sheet:Panoramic lens specification sheet.pdf
