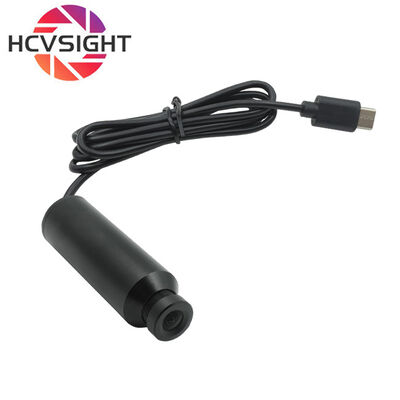

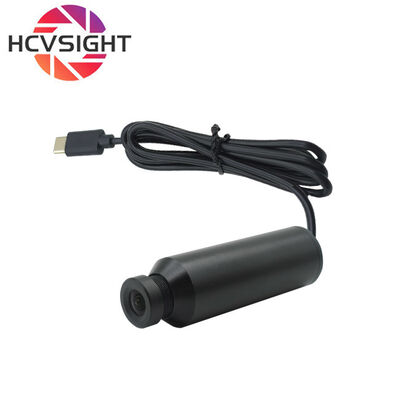

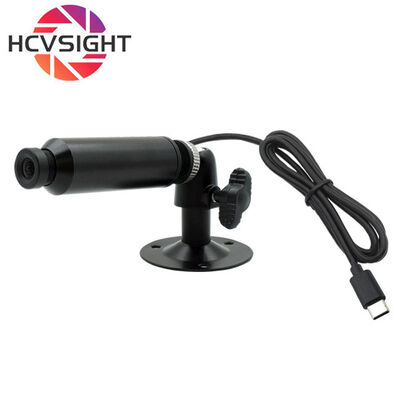

1080p Type-C Mini USB Bullet Camera UVC Driverless For Android Devices

1080p Type-C Mini USB Bullet Camera UVC Driverless For Android Devices

Brand Name: HCVsight
Model Number: HCU-ZDT202TPC
MOQ: 50 pieces
Price: US$36.89/50~199 pieces US$35.09/200~499 pieces US$31.59/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Detail Information
Place of Origin:
ShenZhen,China
Interface:
Type-c
Pixel:
2mp
Compatibility:
Windows/Mac OS/Linux/Andriod
Lens:
90°(Customizable)
Power:
DC 5V
Sensor:
1/2.9”CMOS
Frame Rate:
30fps
Product Size:
20mmX65mm(Base Size Is Not Included)
Agreement:
UVC
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/pieces/mouth
Highlight:

1080p Surveillance Camera

,

2MP Surveillance Camera

,

Type C Interface bullet surveillance camera

Product Description
1080p Type-C Mini USB Bullet Camera UVC Driverless For Android Devices
This 1080p Type-C mini USB bullet camera delivers stable performance and true 1080p HD image quality. Featuring a distortion-free lens, universal UVC driverless compatibility, and USB Type-C OTG support, it works seamlessly on Android devices, Windows PCs, laptops, and embedded platforms. Whether you're building smart devices, machine vision systems, or portable inspection cameras, this mini USB bullet camera provides the durability, clarity, and reliability required for demanding business applications.
Technical Specifications
Sensor 1/2.9"
Pixel 2MP
Compression Format MJPG/YUV2
Frame Rate 1920*1080 @ 30 fps
Audio Supported
Power DC 5V
Interface Type-C
Lens EFL:3mm, Focal Length:2.2, Distortion:<-1.0%
FOV 90°(Customizable)

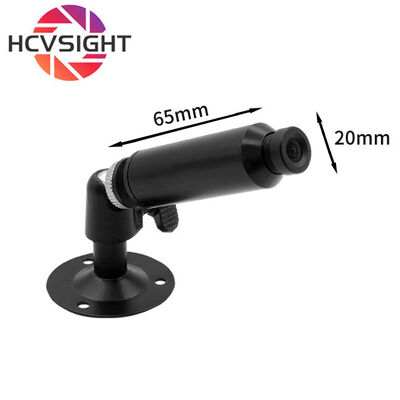

Product Size 20mmx65mm (Base size not included)
Working Temperature <70°C
Power Consumption 0.25W
Model HCU-ZDT202TPC
Agreement UVC
Compatibility Windows/Mac OS/Linux/Android


Core advantages of the product


1. Compact Industrial-Grade Design: Featuring a compact bullet-shaped housing, its mini size allows engineers to easily embed the USB camera module into products without redesigning the internal structure.

2. Low-Distortion Lens for True 1080p HD Image Quality: The integrated high-sensitivity sensor delivers full HD 1080p output, producing clear, sharp, and color-accurate images suitable for real-time monitoring and data analysis.

3. UVC Driverless and Universal Compatibility: No driver installation required; compatible with Android OTG devices (phones/tablets supporting Type-C OTG), Windows PCs and laptops, macOS, Linux embedded platforms, and other operating systems.

4. Type-C OTG Plug and Play for Android Devices: Utilizing a USB Type-C interface, it supports fast and stable data transfer and ensures reliable connectivity with Android smartphones and tablets through OTG functionality.

Applications

Industrial automation and machine vision, precision equipment status monitoring, security monitoring, embedded intelligent access control/attendance systems, miniaturized concealed monitoring equipment, vehicle mobile monitoring, smart home security, endoscope assisted imaging, laboratory equipment monitoring, small traffic monitoring equipment, intelligent retail terminals, drone/robot visual perception, education/conference system cameras, various embedded devices that require compact visual solutions, advertising machines, all-in-one machines, intelligent electronic scales, automatic welding equipment, fire water guns, external law enforcement instruments, external cameras for Android phones, computer cameras, high-speed cameras, etc.

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).


FAQ

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring.

Q: Which industries do you serve?

A: Our cameras are widely used in:

✔ Industrial automation (defect detection, robotics)

✔ Smart security (facial recognition, access control)

✔ Retail/logistics (barcode scanning, inventory management)

✔ Medical equipment and traffic monitoring

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
