Mini Bullet Full HD 1080p USB Camera Module Type-c Plug For Android

Mini Bullet Full HD 1080p USB Camera Module Type-c Plug For Android

Brand Name: HCVsight
Model Number: HCU-ZDT182TPC
MOQ: 50 pieces
Price: US$32.69/50~199 pieces US$31.09/200~499 pieces US$29.59/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Detail Information
Place of Origin:
ShenZhen,China
Pixel:
2mp
Compatibility:
Windows/Mac OS/Linux/Andriod
Frame Rate:
30fps
Color:
Black

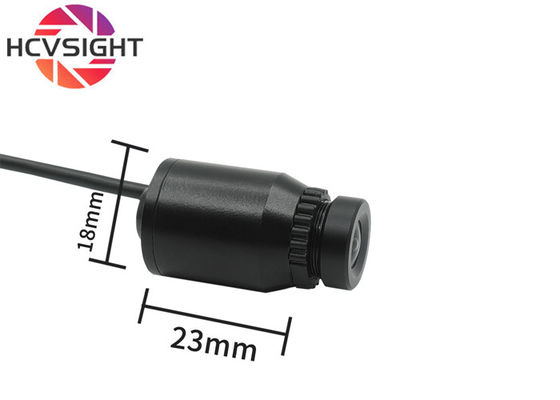

Product Dimensions:
18mmx23mm(Base Size Is Not Included)
Sensor Type:
CMOS
Interface:
Type-c
Audio:
Support
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/pieces/mouth
Highlight:

1080p Industrial Surveillance Cameras

,

Bullet Industrial Surveillance Cameras

,

30fps surveillance cam

Product Description
Mini Bullet Full HD 1080p USB Camera Module Type-c Plug For Android
Product Introduction
This Full HD 1080P mini bullet-shaped USB camera module uses an advanced CMOS sensor to deliver clear, distortion-free images. Its plug-and-play UVC design ensures seamless compatibility with Windows, Linux, Android, and most vision software, allowing users to quickly integrate it into their systems without installing any drivers. Designed for security monitoring, industrial vision, machine inspection, artificial intelligence applications, and computer imaging systems, its compact bullet-shaped design perfectly combines high-resolution imaging performance with a robust housing, providing stable image quality even in harsh environments and ensuring continuous, stable operation.
Technical Specifications:
Sensor 1/2.9"CMOS
Resolution 2MP
Frame Rate 1920×1080 @30fps
Compression Format MJPG/YUV2
Lens Specifications Effective length: 3mm
F.ON: 2.2
Distortion: <-1.0%
FOV 90 degrees
Power Requirements DC 5V
Power consumption 0.25w
White balance Automatic
Operating Temperature <70°C
Interface Type-C
Supported OS WinXP/Mac OS/Linux/Win7/Win8/Win10/Android
Model HCU-ZDT182TPC

Key Features

  • Full HD Image Quality: Equipped with a 1920 × 1080 resolution sensor, it produces clear, detailed, and color-accurate images.

  • Image parameters (exposure, white balance, gain, contrast, saturation) can be adjusted via an app.
  • Mini Bullet-Shaped Design: Its compact body allows this mini USB camera to be easily integrated into embedded systems, small devices, self-service kiosks, POS terminals, and any system requiring a small USB camera. It can be easily installed in space-constrained industrial settings and retail equipment.

  • UVC Plug and Play Compatibility: Standard video applications can be used without drivers, and it supports multiple operating systems (Windows, Mac, Linux, Android).


Customization Services

We support comprehensive customization services, including:
Lens type and field of view (FOV)
PCB size and layout
Interface type
Cable length
Shell size, shape, and material
Sensor upgrade (2MP/3MP/4MP/5MP/8MP/12MP)

Application Areas

Industrial Automation: Precision measurement, AOI inspection, OCR/OCV, robotic guidance
Security Monitoring: Industrial site monitoring, compact security devices, mobile monitoring
Smart Devices: Access control, retail analytics, medical imaging, educational equipment
Other Applications: Video conferencing, intelligent transportation, portable instruments
Drone/Robot Vision: Environmental perception for drones and robotics
Scanning Devices: High-precision handheld or embedded scanning solutions

Why Choose Our USB Camera?

We provide end-to-end imaging solutions for B2B clients requiring high reliability, rapid delivery, and technical support. Our optimized production lines ensure long-term stable supply, guaranteeing consistent quality for large-volume orders.

  • 1. A professional engineering team with deep expertise in machine vision.

  •  2. Rapid response and efficient communication; tailored solutions; comprehensive customization from interface to functionality; large-scale production capabilities with OEM/ODM partners.

  • 3. Mature supply chain and rigorous quality control.
  • 4. Reliable supply chain and strong factory capabilities.
  • 5. Rapid sample delivery.

  • Flexible sourcing and sampling: Sample sourcing (1-50 pieces) supports rapid testing and reduces development risk. Bulk purchases enjoy tiered pricing discounts and support long-term cooperation.

    Fast delivery and global logistics: Support for fast shipping and global logistics distribution helps companies shorten product development cycles.

FAQ

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring.

Q: Which industries do you serve?

A: Our cameras are widely used in:

✔ Industrial automation (defect detection, robotics)

✔ Smart security (facial recognition, access control)

✔ Retail/logistics (barcode scanning, inventory management)

✔ Medical equipment and traffic monitoring

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
