1080P Mini Bullet Camera 30FPS Full HD Type-C Camera Suitable for Android Phones

1080P Mini Bullet Camera 30FPS Full HD Type-C Camera Suitable for Android Phones

Brand Name:	HCVsight
Model Number:	HCU-JZ192TPC
MOQ:	50 pieces
Price:	US$34.69/50~199 pieces US$32.99/200~499 pieces US$31.39/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Lens Type:

Customizable

Sensor Type:

CMOS

Pixel:

2mp

Color:

Black

Product Dimensions:

19mmx15mm

Compatibility:

Windows/Mac OS/Linux/Andriod

Interface:

Type-c

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

USB Camera 2 Million

USB Camera

box camera

Product Description

1080P Mini Bullet Camera 30FPS Full HD Type-C Camera Suitable for Android Phones

Product Introduction

This 1080p USB-C mini bullet camera is a compact Full HD USB webcam featuring a 2-megapixel CMOS sensor, 30fps real-time video streaming, and a rugged bullet-shaped housing, delivering consistent image quality, fast data transfer, and excellent compatibility with modern industrial equipment. Supporting Windows, Linux, macOS, and most embedded platforms, it's an ideal solution for OEM/ODM integrators, such as in machine vision, video conferencing systems, industrial equipment, AI imaging, embedded system integration, and computer vision projects.

Technical Specifications

Sensor	1/2.9"
Resolution	2MP (1920×1080)
Frame Rate	30fps
Lens Specifications	EFL:3mm, F/2.2, Distortion: <-1.0%, 4E+IR elements
FOV	90°
White balance	Automatic
Power consumption	0.25w
Operating temperature	<70°
Model No	HCU-JZ192TPC
Power	DC 5V
Dimensions	19mm × 15mm
Operating Systems	Windows XP/7/8/10, Mac OS, Linux, Android

Product Features

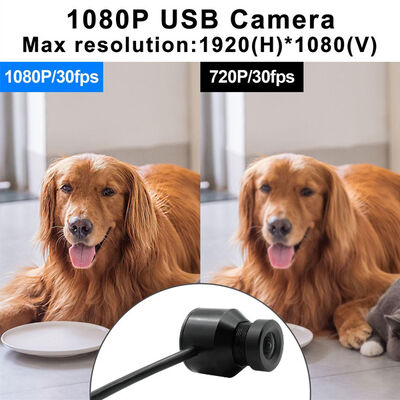

1080P Full HD Image Quality: With 2 million effective pixels and support for up to 1920 * 1080 resolution, it can output clear, sharp, and detailed full HD video images, bringing an immersive visual experience.

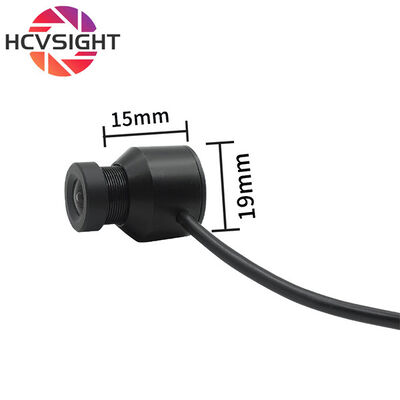

Ultimate miniaturization design: The product size is only 15mm x 19mm, making it a masterpiece in the industry. The ultra mini size makes it almost space saving, easy to hide and install, perfectly integrated into various application environments, balancing aesthetics and functionality.

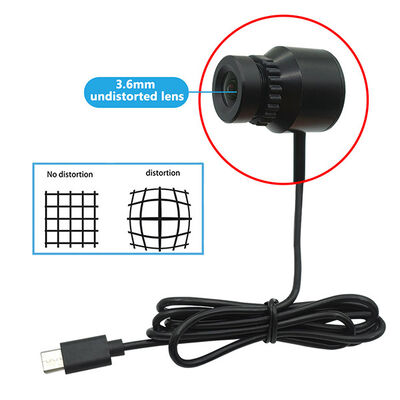

Equipped with high-quality 3.6mm distortion free lens, providing a 90 ° viewing angle: Compared with traditional wide-angle lenses, it can effectively reduce the stretching and deformation of edge images, ensuring that the objects in the center and edges of the image remain true to their original appearance, especially suitable for application scenarios that require accurate images.
30FPS Smooth Frame Rate: In 1080P Full HD mode, it can still maintain a high frame rate recording of 30 frames per second. The screen is smooth and not stuttering, capable of capturing fast-moving objects clearly, meeting the needs of high-quality video calls and recording.

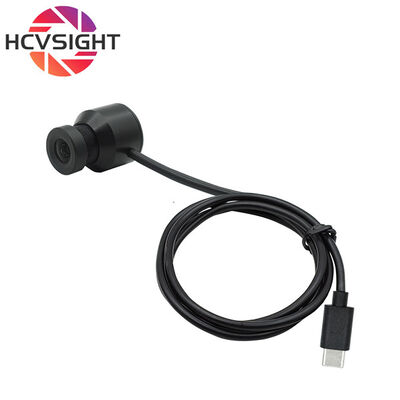

Adopting mainstream Type-C interface: forward and reverse blind insertion, convenient and fast. No additional driver required, plug and play. Easily connect to the latest laptops, tablets (such as MacBook, iPad Pro), Android phones (with OTG support), and other devices, representing the future technological standards.

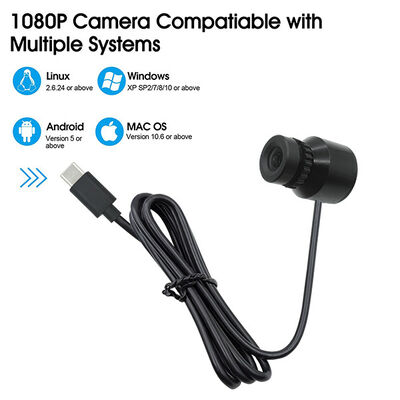

Wide compatibility: Perfectly compatible with mainstream operating systems such as Windows, macOS, Linux, Android, etc.

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.

2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.

3. Cable and Interface: Customize cable length and interface type.

4. Pixel customization: Different resolution and frame rate models are available.

Product application areas

Machine Vision and Industrial Automation: Dimensional Measurement, Product Positioning, QR Code/Barcode Recognition, Defect Detection, Automated Production Line Quality Control.
Artificial intelligence and educational research: facial recognition, gesture recognition, object tracking, machine learning model training, robotics.
Intelligent office and security monitoring: high-definition video conferencing system, facial recognition access control/attendance machine, smart doorbell, small monitoring equipment.
Medical and biometric: portable medical device imaging, microscope assisted imaging, iris recognition.
Intelligent retail and the Internet of Things (IoT): smart vending cabinets, customer flow tracking systems, behavior analysis, and the "eyes" of IoT devices.
Embedded and consumer electronics: integrated into drones, intelligent robots, and in vehicle assistance systems as visual input unit.

Why choose our USB camera?

Plug and play: Lowering the development threshold and quickly integrating into the system.
OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
Industrial grade reliability: ensuring stability during long-term operation.
Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

FAQ

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring.

Q: Which industries do you serve?

A: Our cameras are widely used in:

✔ Industrial automation (defect detection, robotics)

✔ Smart security (facial recognition, access control)

✔ Retail/logistics (barcode scanning, inventory management)

✔ Medical equipment and traffic monitoring

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

Lens specification sheet:Specification for 3.6mm undistorted lens.pdf

About our more products:Huachuang Finished Product List.xls
