Android USB HD Bullet Camera UVC Driverless Compatible With Android Devices

Brand Name:	HCVsight
Model Number:	HCU-AZ181ZDT
MOQ:	50 pieces
Price:	US$29.59/50~199 pieces US$28.19/200~499 pieces US$26.79/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Pixel:

1mp

Compatibility:

Windows/Mac OS/Linux/Andriod

Product Dimensions:

18mmx23mm(Base Size Is Not Included)

Sensor:

1/4"CMOS

Interface:

Android

Protocol:

UVC

Lens:

90°（customizable）

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

720p HD USB Camera

1MP Bullet Camera

2.1mm Lens Android Camera

Product Description

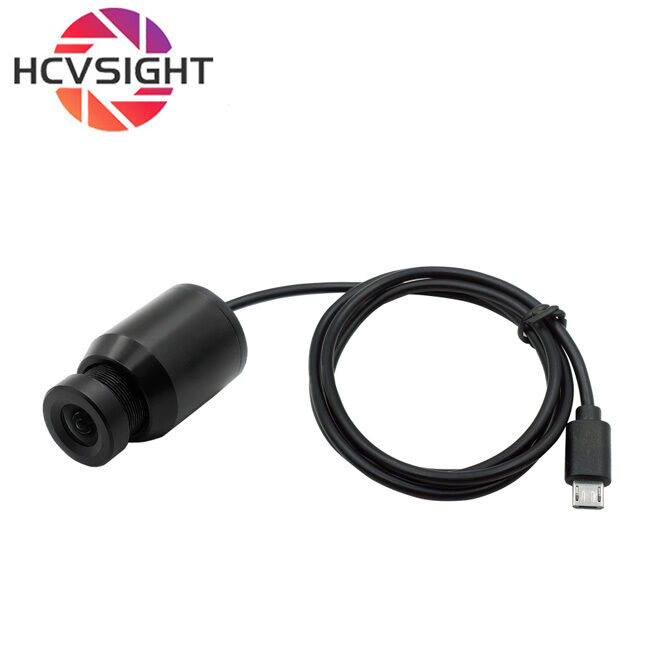

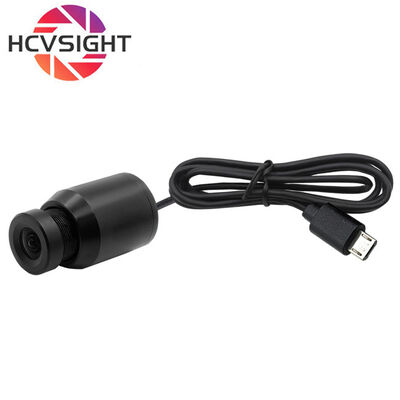

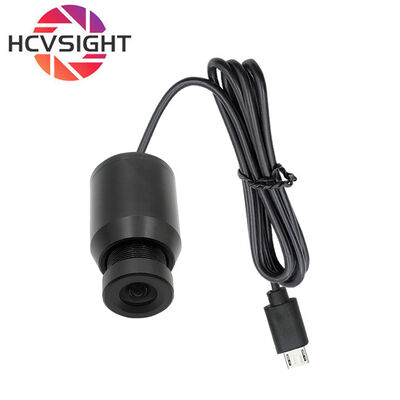

Android USB HD Bullet Camera UVC Driverless Compatible With Android Devices

This compact, plug-and-play USB camera features a unique mini bullet design, measuring only 18x23mm, making it lightweight and portable, yet boasting 1-megapixel 720p HD image quality and a stunning 120° ultra-wide-angle field of view. Through a plug-and-play Android standard interface (Micro USB), it instantly transforms your device into a multi-functional surveillance recorder. Designed for enterprises, OEM integrators, and mobile inspection systems, it is ideal for embedded camera module integration, industrial inspection, surveillance, or mobile device applications.

Technical Specifications

Parameter	Specification
Sensor	1/4" COMS
Resolution	1MP
Compression Format	MJPG/YUV2
Frame Rate	1920×1080 @ 30fps
Power Supply	DC 5V

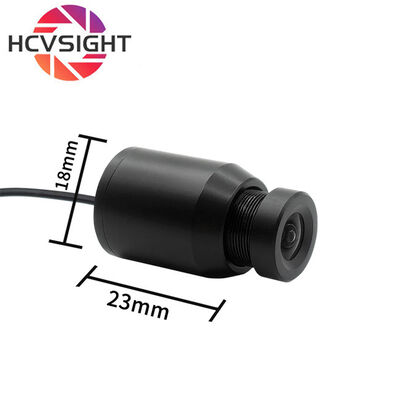

size	18mmx23mm(Base size is not included)
Working Temperature	<70°C
Lens Specifications	Effective length: 2.2mm, F.NO:2.1, Distortion: <-89%
FOV	90°
Supported OS	WinXP/Win7/Win8/Win10/Android/Mac OS/Linux

Core strengths

720p HD resolution and 1MP sensor: Provides crisp 1280×720 video/images, suitable for CCTV camera modules, device-side monitoring, or embedded system integration.

2.1mm wide-angle lens: Offers a wide field of view, ideal for mobile inspection, vehicle inspection cameras, dashcam modules, surveillance bullet camera modules, and embedded camera projects.

Android USB and OTG/UVC plug-and-play: Recognized as a standard USB webcam, no drivers required. Simply connect to an Android phone, tablet, or other USB-enabled device to start recording. Ideal for use as a USB camera in Android phones/tablets or industrial embedded systems.

Compact and durable embedded design: Industrial camera modules suitable for OEM customization—compact bullet housing for easy installation, with optional custom housings or wiring harnesses to fit your equipment.

Low MOQ & OEM friendly: Supports small-volume orders and full OEM customization (custom lenses, cable lengths, branding, packaging), ideal for small businesses or product developers.

Wide range of applications: from surveillance to mobile inspection, vehicle cameras, embedded system cameras, POV video capture, etc., one module for multiple application scenarios.

Typical Applications

1: ATM,Kiosk,POS,TV box
2: Advertising cameras
3: Smart TV built-in camera
4: Construction Equipment
5: Banking equipment
6: body switch
7: Scanner
8: a mobile terminal device
9: Medical diagnostic image acquisition
10: fingerprints, palm prints image acquisition
11: video door camera

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Why Choose our USB Camera?

OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
Industrial grade reliability: ensuring stability during long-term operation.
Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

Lens specification sheet:2.1mm Wide Angle Lens Specification.pdf

About our more products:Huachuang Finished Product List.xls
