| Brand Name: | HCVsight |
| Model Number: | HCU-DJ158RG |
| MOQ: | 50 pieces |
| Price: | US$39.59/50~199 pieces US$37.69/200~499 pieces US$35.79/500~999 pieces |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 pieces per month |
1. True 4K Ultra HD Resolution (3264×2488): This camera's 4K video conferencing capability ensures clear and sharp image quality, ideal for applications such as corporate meetings, remote presentations, remote education, and video collaboration.
2. Fixed-Focus Wide-Angle Lens: This wide-angle mid-screen camera boasts a field of view of up to 120°, easily covering multi-person meeting scenarios, suitable for small meeting rooms or team collaboration.
3. UVC Plug and Play Compatibility: No drivers required; simply connect via USB 2.0 for immediate use. Compatible with the following operating systems: Android, Windows, macOS, and Linux.
4. Optimized for Mid-Screen and Interactive Display Integration: Optimized for mid-screen camera placement, interactive flat panel displays, all-in-one video conferencing systems, touch displays, and corporate collaboration whiteboards.
| Specification | Details |
|---|---|
| Sensor | 1/3.2"CMOS |
| Pixel | 8MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 3264X2488 15fps |
| Audio | Support |
| Power frequency working voltage | DC 5V |

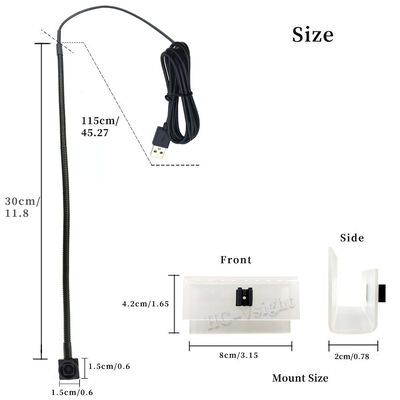

| Product size | 15mm×15mm |
| White balance | Automatic |
| Working temperature | <70° |
| Power consumption | 0.25w |
| Model | HCU-DJ158RG |
| Interface type | USB2.0 |
| Night vision function | Not supported |
| Lens specifications | Effective length: 1.9mm Focal length: 2.2 Distortion: <-8.7% FBL: 0.8MM |
| FOV | 120° |
| Support operating system | WinXP/Mac OS/Linux/Win7/Win8/Win10/Android |
Enterprise video conferencing systems
Mid-screen conferencing camera for interactive panels
UC collaboration devices & all-in-one meeting bars
Distance learning and virtual classrooms
Telemedicine and remote consultation setups
Boardroom and training room camera upgrades
Corporate live presentations
Smart conference room solutions
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).
FAQ
Q: What types of cameras do you manufacture?
A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:
Embedded cameras for face/object/barcode recognition
Industrial cameras for automated inspection and measurement
Security vision cameras for surveillance and monitoring
Q: Can you customize cameras?
A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)
Q: How is the quality control?
A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.
Q: What is the lead time?
A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
