Mini Bullet-shaped USB OTG Camera 720P UVC Driver-free Design For Android Systems

Mini Bullet-shaped USB OTG Camera 720P UVC Driver-free Design For Android Systems

Brand Name: HCVsight
Model Number: HCU-BT181AZ
MOQ: 50 pieces
Price: US$32.69/50~199 pieces US$31.09/200~499 pieces US$29.59/500~999 pieces
Payment Terms: T/T
Supply Ability: 100,000 pieces per month
Detail Information
Place of Origin:
ShenZhen,China
Certification:
CE、RoHS、FCC
Frame Rate:
1280x720@30fps
Interface:
Android
Pixel:
1mp
Compatibility:
Windows/Mac OS/Linux/Andriod
Color:
Black
Sensor:
1/4”CMOS
Product Dimensions:
19mmx43mm
Lens:
90°(Customizable)
Agreement:
UVC
Warranty Period:
1 Year Warranty
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100,000 pieces per month
Highlight:

CMOS raspberry pi surveillance system

,

720p raspberry pi surveillance system

,

1mp raspberry pi security camera

Product Description
Mini Bullet-shaped USB OTG Camera 720P UVC Driver-free Design For Android Systems
This mini bullet-shaped USB OTG camera is a compact, industrial-grade micro-camera designed for integration with Android devices, industrial inspection, monitoring, and OEM products. It features a 1-megapixel 720P CMOS sensor, is compatible with the UVC driverless protocol, and supports plug-and-play USB OTG connectivity, delivering stable video performance within an ultra-small 19×43mm metal housing. This camera is widely used in machine vision, portable inspection equipment, endoscopes, Android data terminals, production line monitoring, and custom embedded camera solutions.
Technical Specifications
Parameter Specification
Sensor 1/4"CMOS
Pixel 1MP
Compression format MJPG/YUV2
Frame rate 1280x720 @30fps
Audio None
Operating voltage DC 5V
Dimensions 19mm×43mm
White balance Automatic
Operating temperature <70°C
Power consumption 0.25W
Model No HCU-BT181
lens FOV:90°
Interface type Android
Supported OS WinXP/Mac OS/Linux/Win7/Win8/Win10/Android

Product features


Million pixel image quality: using a 1/4 inch CMOS sensor, supporting 1280×720 resolution, providing clear and delicate imaging effects.
High performance processing: Supports MJPEG compression format output, effectively reducing bandwidth usage and ensuring smooth video transmission.
Low illumination performance: The minimum illumination can reach 0.1 Lux, and the usable image quality can still be maintained in low light environments
Mini bullet-shaped metal casing: The metal material is not only sturdy and durable, but also facilitates heat dissipation, improving product stability. Its compact design (product dimensions of only 19×43mm) makes it easy to install and conceal.
USB OTG interface: Supports USB 2.0 High Speed and OTG protocols, allowing direct connection to Android smartphones, tablets, or other devices that support OTG functionality.
Plug and play: Compliant with the UVC protocol, no driver installation is required on Windows XP and above, Linux, Android, and other systems.
Rich adjustable parameters: Users can adjust various image parameters such as brightness, contrast, saturation, hue, clarity, gamma value, exposure, etc. through the software.
Powerful compatibility: Widely supports multiple operating systems such as Windows, Linux, macOS, Android, etc.

Customization Options
We offer comprehensive OEM/ODM customization services to meet specific application requirements:
  • Lens customization: Specific focal length, field of view angle, distortion control
  • Casing customization: Dedicated casing, bracket, or mounting solutions
  • Cable and interface: Custom lengths and connector types (USB, Type-C)
  • Resolution options: Higher pixel models available (2MP,4MP, 5MP, 8MP, 12MP,16MP)
  • Module types: USB camera, AHD camera, CVBS camera, wired webcam, wireless WiFi camera modules.
Why Choose our USB Camera?
  • OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
  • Industrial grade reliability: ensuring stability during long-term operation.
  • Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
  • Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
  • Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

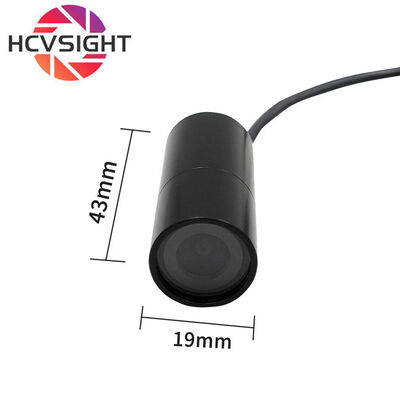

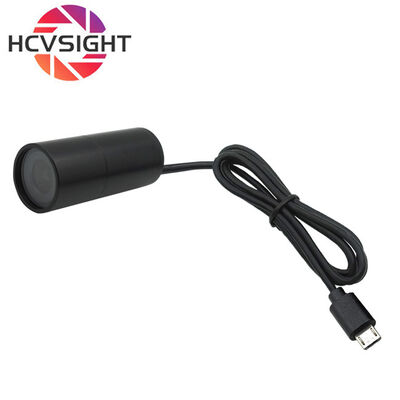

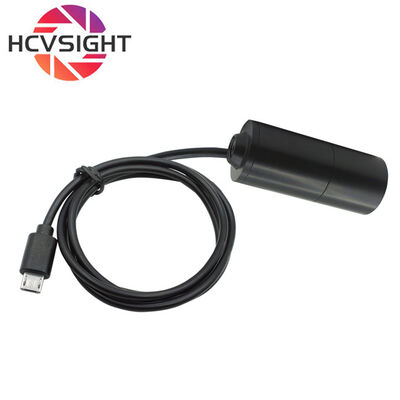

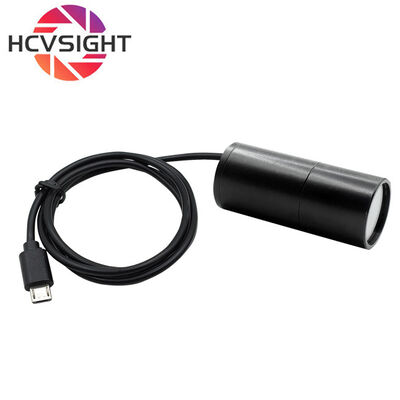

Mini Bullet-shaped USB OTG Camera 720P UVC Driver-free Design For Android Systems 0 Mini Bullet-shaped USB OTG Camera 720P UVC Driver-free Design For Android Systems 1
