1080P Metal Box Mini USB Camera UVC Driver-Free For Robots And Embedded Systems

1080P Metal Box Mini USB Camera UVC Driver-Free For Robots And Embedded Systems

Brand Name:	HCVsight
Model Number:	HCU-FK202TPC
MOQ:	50 pieces
Price:	US$35.99/50~199 pieces US$34.19/200~499 pieces US$32.49/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Certification:

CE、RoHS、FCC

Pixel:

2mp

Frame Rate:

30fps

Lens:

90°（Customizable）

Interface Type:

Type-c

Size:

22mmX22mm

Compatibility:

Windows/Mac OS/Linux/Andriod

Color:

Black

Warranty Period:

1 Year Warranty

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100,000 pieces per month

Highlight:

Micro Size 20x20mm USB Camera

Customizable Lens Mini USB Camera

22mmx22mm Dimensions USB Webcam

Product Description

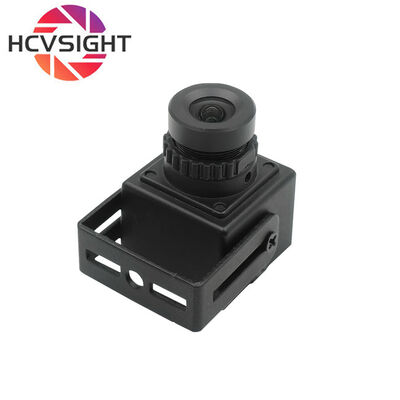

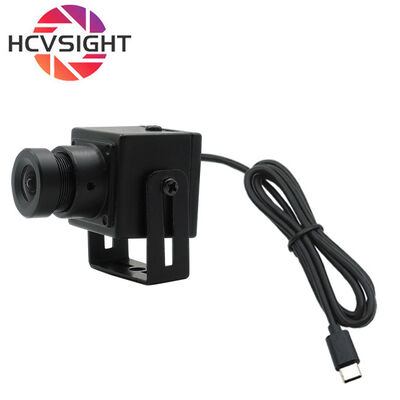

1080P Metal Box Mini USB Camera UVC Driver-Free For Robots And Embedded Systems

This compact, high-performance 2MP USB camera in a metal housing features a precision, distortion-free lens, delivering exceptional image clarity for close-up inspection, barcode scanning, face recognition, and embedded systems demanding high optical precision. Its ultra-small 22×22mm metal casing and plug-and-play USB interface make it an excellent choice for device manufacturers seeking reliable, long-life imaging components, stable supply, and OEM/ODM customization options. With its driverless UVC compatibility, this 1080P USB camera is instantly recognized by Windows, Linux, Android, and macOS systems, making it ideal for rapid deployment in a wide range of industries, including robotics, AI vision systems, industrial automation, machine learning, self-service kiosks, biometrics, medical devices, and smart IoT devices.

Product functions and features

1. True 1080P Full HD Imaging: This camera uses a high-quality 2-megapixel CMOS sensor, providing 1920×1080 resolution for clear, sharp images and rich, true-to-life colors.

2. Distortion-Free Precision Lens: The integrated low-distortion lens is optimized for applications requiring precise geometry and minimal image distortion.

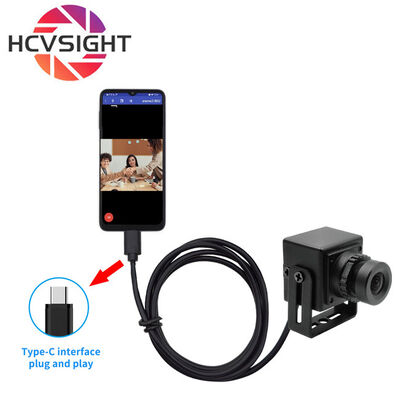

3. Mainstream USB Type-C Interface: Supports reversible insertion for excellent compatibility. No driver installation is required (compatible with UVC protocol). It can connect to computers, tablets, mobile phones, smart TVs, and other devices, instantly recognizing and initiating video calls, live streaming, or recording, significantly improving work efficiency and user convenience.

4. UVC Driver-Free Compatibility: This camera supports the standard USB Video Class (UVC) protocol, requiring no driver installation. It perfectly supports mainstream operating systems such as Windows, macOS, Linux, and Android.

Technical Specifications

Sensor	1/2.9"
pixel	2MP
Resolution	1920x1080@30fps
Compression Format	MJPG/YUV2
Interface	Type-C

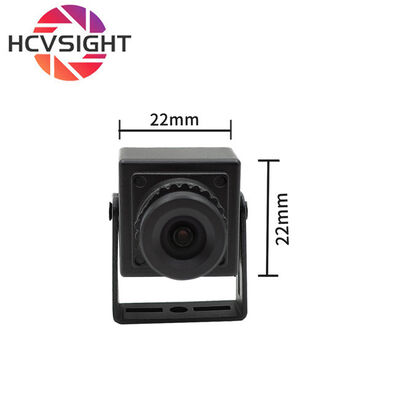

size	22mmX22mm
Lens Specifications	EFL:3mm, F/2.2,
FOV	90°
Product Model	HCU-FK202TPC
Operating Temperature	<70°C
Power	DC 5V, 0.25W consumption
Operating Systems	Windows XP/7/8/10, Mac OS, Linux, Android

Applications

ATM machines and banking equipment
Vending machines and digital signage
Medical equipment and hospital systems
Industrial automation and robotics
Security surveillance systems
Law enforcement equipment

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Why Choose our USB Camera?

OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
Industrial grade reliability: ensuring stability during long-term operation.
Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

Lens specification sheet:Specification for 3.6mm undistorted lens.pdf

About our more products:Huachuang Finished Product List.xls
