Ultra HD 4K 8MP Autofocus USB Camera For Android Phones UVC Driverless

Ultra HD 4K 8MP Autofocus USB Camera For Android Phones UVC Driverless

Brand Name:	HCVsight
Model Number:	HCU-ZDDJ158TPC
MOQ:	50 pieces
Price:	US$39.59/50~199 pieces US$37.69/200~499 pieces US$35.79/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Pixel:

8mp

Compatibility:

Windows/Mac OS/Linux/Andriod

Frame Rate:

15fps

Color:

Black

Product Dimensions:

15mmx15mm

Sensor Type:

CMOS

Interface:

Type-c

Microphone:

Built-in/External

Focus Type:

Auto-focusing

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

8MP USB Camera

15fps USB Camera

15mm security cameras

Product Description

Ultra HD 4K 8MP Autofocus USB Camera For Android Phones UVC Driverless

Product description

This ultra-high-definition 4K autofocus 8MP USB camera boasts 4K ultra-high-definition resolution, advanced autofocus, UVC compatibility, and OTG plug-and-play functionality. Truly "plug and play"—it requires no driver installation and is seamlessly compatible with most modern operating systems. Supporting Windows, Mac, Linux, and Android operating systems, this camera is ideal for OEM system developers, industrial automation manufacturers, and businesses requiring large-scale deployments and consistent image quality. It provides high-precision imaging for machine vision, AI recognition, robotics, medical devices, inspection systems, and embedded applications.

Key Features:

True 4K ultra high definition image quality: 8 million pixel high-definition imaging, with a resolution of up to 3264×2448, and four times the detail expression of 1080P, bringing a detailed visual experience.
UVC Drive Free, Plug and Play: Compliant with UVC (USB Video Class) standards, automatically recognized when connected to systems such as Windows, macOS, Linux, Android, etc., without the need to install additional drivers, greatly improving usage efficiency.

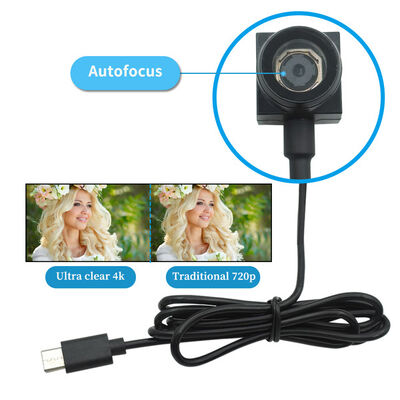

High performance autofocus: The built-in autofocus system ensures that the subject is always clear and sharp, making it easy to handle shooting scenes at different distances and saying goodbye to the hassle of manual focusing.
Built in high-sensitivity microphone: not only captures clear images, but also synchronously records environmental sound, achieving integrated audio and video transmission, meeting the audio needs of scenarios such as conferences and live broadcasts.

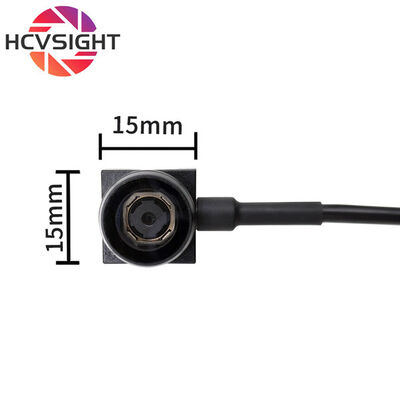

Mini body and professional interface: With a super compact design of only 15x15mm, it is lightweight, portable, and easy to hide and install. Standard Type-C interface, providing stable data transmission and power supply, with strong compatibility.
High quality optical components: Equipped with a 1/3.2-inch high-quality image sensor, paired with a 3.57mm focal length and 78 ° viewing angle lens, it ensures distortion free and clear image quality while providing just the right field of view.

Technical Specifications

Parameter	Value
Sensor	1/3.2"
Resolution	8MP
Frame Rate	3264×2448 @ 15fps
Video Compression	MJPEG/YUY2
Focus Type	Autofocus
Audio Support	support
Power Requirement	DC 5V
Dimensions	15mm × 15mm
Operating Temperature	<70°C
Interface	Type-C
lens	3.6mm
FOV	78°
Supported OS	Windows/Mac OS/Linux/Android

Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).

Product application scenarios

Due to its compact size, excellent performance, and durability, the Android OTG 1080p mini USB camera module is widely used in:

Industrial Automation, Machine Vision Inspection, Industrial Barcode/QR Code Inspection, SMT/Patch Visual Assistance, Robot Vision, Security Monitoring, Mini Surveillance Cameras, Mobile Patrol Equipment, Access Control Terminals, Smart Lockers, Consumer Electronics and Mobile Devices, Android USB Camera Accessories, Embedded Vision Projects, Medical and Laboratory Diagnostic Equipment, and Laboratory Testing Systems.

Why Choose This 4K Industrial USB Camera?

✓ Flexible procurement and samples

Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
✓ Stable Supply for Mass Production

Supports OEM customization, long-term supply, consistent quality control.

✓ Excellent Cost-to-Performance Ratio

Offers 4K imaging and industrial stability at a highly competitive price point.

✓ Easy Integration for Engineering Teams

Cross-platform SDK support, UVC driver-free operation, and flexible lens customization reduce R&D cost and time-to-market.

Product Images

About our more products:Huachuang Finished Product List.xls

Lens specification sheet:Specification for autofocus lens.pdf
