1080p Wide-angle Distortion-free Lens Mini USB Camera Suitable For Android System

1080p Wide-angle Distortion-free Lens Mini USB Camera Suitable For Android System

Brand Name: HCVsight
Model Number: HCU-WJB282
MOQ: 50 pieces
Price: US$32.59/50~199 pieces US$30.96/200~499 pieces US$29.49/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/ pieces/month
Detail Information
Place of Origin:
Shenzhen China
Pixel:
2MP
Color:
Black
Product Size:
15mmx15mm
Lens Angle:
120°(customizable)
Interface Type:
Type-C Interface
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/ pieces/month
Highlight:

Industrial Grade USB Camera

,

Compact Size Mini USB Camera

,

High Definition USB Camera

Product Description
1080p Wide-angle Distortion-free Lens Mini USB Camera Suitable For Android System

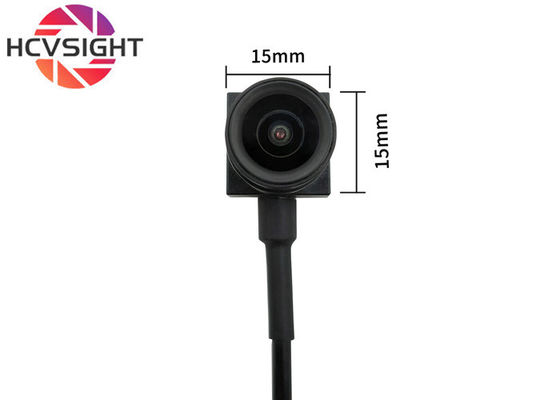

This 2-megapixel ultra mini USB camera achieves impressive 1080P full HD image quality with its astonishingly small size of only 15x15mm. It is equipped with a professional 1/2.9-inch large bottom chip and a 2.8mm distortion free wide-angle lens, providing a 120 ° wide field of view while effectively eliminating edge distortion, resulting in high-quality images that are realistic and distortion free. Adopting mainstream Type-C interface, plug and play, widely compatible with various devices such as computers, Android phones, tablets, etc., it is a versatile player in network live streaming, video conferencing, online teaching, and security monitoring.
Key Features

● Full HD 1080P Resolution (1920×1080):Its 2MP image sensor ensures accurate color reproduction and stable frame rates, ideal for multi-scenario deployments.
● 2.8mm Wide-Angle Distortion-Free Lens:Unlike traditional wide-angle camera that suffer from edge distortion, this lens provides a true distortion-free image.
● Type-c Plug-and-Play Interface:Compatible with Windows, Linux, Android, and most industrial vision platforms.

Technical Specifications
Specification Details
Sensor 1/2.9" COMS
Resolution 2MP (1920×1080)
Frame Rate 30fps
Interface Type-C (default 1.2m cable)
Lens Specifications F.NO: 2.0mm, Focal length: 2, Distortion: <-1.0%
FOV 110°
Operating Systems Windows/Mac OS/Linux/Android
Power Requirements DC 5V, 0.25w consumption
Operating Temperature <70°C
Model Number HCU-WJB282
Customization Services

We offer comprehensive OEM/ODM customization services to meet specific application requirements:

  • Lens customization: Specific focal length, field of view angle, and distortion control.
  • Custom casing: Dedicated housing, bracket, or mounting solutions.
  • Cable and interface options: Custom cable lengths and interface types.
  • Resolution options: Higher pixel models available (4MP, 5MP, 8MP, 12MP)
Application Areas

This versatile camera is suitable for numerous applications including:

  • Industrial automation and machine vision
  • Precision equipment status monitoring
  • Security surveillance systems
  • Embedded intelligent access control/attendance
  • Miniaturized concealed monitoring
  • Smart home security
  • Endoscope assisted imaging
  • Drone/robot visual perception
  • Education/conference systems

FAQ

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring.

Q: Which industries do you serve?

A: Our cameras are widely used in:

✔ Industrial automation (defect detection, robotics)

✔ Smart security (facial recognition, access control)

✔ Retail/logistics (barcode scanning, inventory management)

✔ Medical equipment and traffic monitoring

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
