15*15mm 5MP Wide-angle USB Camera Driver-Free Mini USB Webcam For Laptops

15*15mm 5MP Wide-angle USB Camera Driver-Free Mini USB Webcam For Laptops

Brand Name: HCVsight
Model Number: HCU-GJ155(AZ)
MOQ: 50 pieces
Price: US$34.39/50~199 pieces US$32.69/200~499 pieces US$29.59/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/ pieces/month
Detail Information
Place of Origin:
Shenzhen China
Product Type:
USB Camera
Pixel:
5MP
Product Size:
15mmx15mm
Lens Angle:
123°(customizable)
Audio:
Support
Interface Type:
Android Interface
Colour:
Black
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/ pieces/month
Highlight:

5MP USB camera with wide angle

,

15mmx15mm USB camera

,

123° wide angle USB camera

Product Description
15*15mm 5MP Wide-angle USB Camera Driver-Free Mini USB Webcam For Laptops
Product Introduction
This ultra-compact 15×15mm 5MP wide-angle USB camera module features a miniature, easily heat-dissipating 15×15mm housing, a 5-megapixel high-definition sensor, a wide-angle fixed-focus lens, and a driverless UVC USB interface. It delivers excellent image clarity, stable data transmission, and outstanding compatibility across various hardware and software environments. This mini USB network camera is designed for industrial monitoring, embedded system integration, machine vision projects, smart devices, robotics, medical equipment, security terminals, and PC applications.
Technical Specifications
Sensor 1/4"COMS
Pixel 5MP
Compression format MJPG/YUV2
Frame rate 2560X1440 @30fps
Audio support
Power frequency working voltage DC 5V
Product size 15mmx15mm
White balance automatic
Working temperature <70°
Power consumption 0.25w
Model HCU-GJ155(AZ)
Interface type Android interface
USB cable length Default 1.2m
Lens F.NO: 2.2
EFL: 1.9
Distortion: <-8.7%
Component: 4E+IR
FOV D=123° H=102.3° V=84.8°
Support OS Windows/Mac OS/Linux/Android
Core functions of the product

Ultra-compact 15×15mm design:Optimized for OEM/ODM projects, embedded integration, and small-size industrial devices. Ideal for applications requiring mini camera modules such as robotics, IoT terminals, medical instruments, POS machines, and smart home devices.

● High-resolution 5MP HD sensor:5-megapixel high-definition resolution (2560X1440@30fps) provides exquisite image quality and accurately captures details.Delivers crisp images for applications needing accuracy and detail.

● Wide-angle fixed-focus lens:The wide-angle USB camera provides a broader field of view, ideal for surveillance, industrial monitoring, conferencing, and automation systems,easy to develop and integrate.

● Plug-and-play UVC driver-free:Fully compatible with Windows, Linux, macOS, Android — no additional drivers needed.

● Adjustable image parameters: Support adjusting exposure, white balance, gain, contrast, saturation and other parameters through software to adapt to complex lighting scenes.
● Industrial grade wide-angle lens: focal length 1.9mm, fixed focus wide-angle 123°, wide field of view.
● Audio: Built-in microphone, supports synchronous compression and transmission of audio and video.

Customized services
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
  • Lens customization: specific focal length, field of view angle, distortion control.
  • Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
  • Cable and Interface: Customize cable length and interface type.
  • Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 8MP, 12MP).
Camera application field

This high-performance, small-sized camera module is an ideal choice for product development in the following fields:
Smart home devices: integrated into smart doorbells, smart cat eyes, home robots, baby monitors, smart refrigerators, etc., to achieve functions such as video calls, motion detection, and human recognition.
Security monitoring products: As the core imaging unit of micro network cameras, hidden cameras, and portable law enforcement recorders.
Industrial applications: Used for primary machine vision applications such as small size measurement, simple barcode recognition, and production line process monitoring.
Office and video conferencing: Embedded into video conferencing systems, smart whiteboards, and laptops, providing high-definition video input.
Intelligent transportation and in car electronics: can be used as a modular solution for driving recorders, in car monitoring cameras, and reversing cameras.

Why choose our USB camera?
  • OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
  • Industrial grade reliability: ensuring stability during long-term operation.
  • Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
  • Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
  • Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

FAQ

Q: Can we purchase samples?

A: Sure, we offer flexible procurement and samples: sample procurement (1-50 pieces) supports rapid testing and reduces development risks. Bulk purchases can enjoy price tiered discounts and support long-term cooperation.

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring.

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

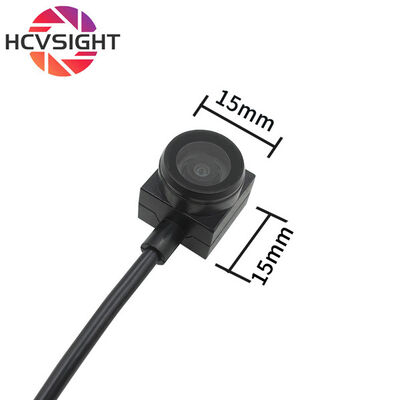

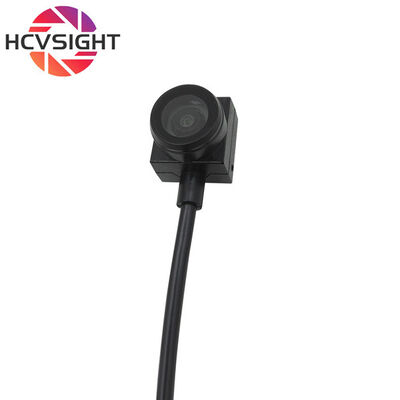

15*15mm 5MP Wide-angle USB Camera Driver-Free Mini USB Webcam For Laptops 0

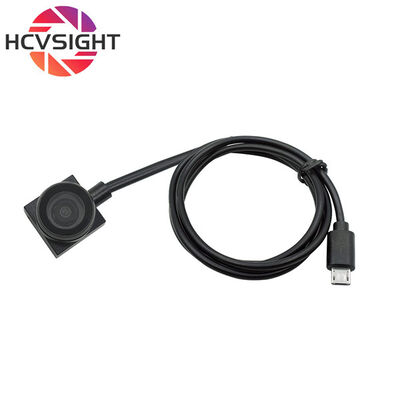

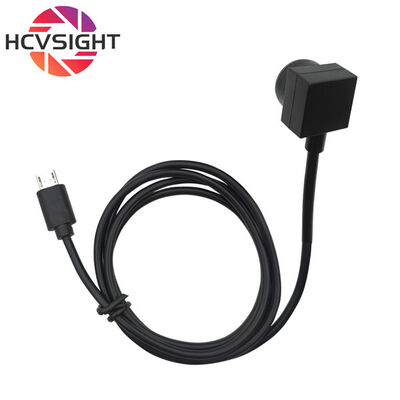

15*15mm 5MP Wide-angle USB Camera Driver-Free Mini USB Webcam For Laptops 1
