15*15mm USB Wide Angle Fixed Focus Webcam 4K 8MP Mini OTG USB Camera

Brand Name:	HCVsight
Model Number:	HCU-GJ158(type-c)
MOQ:	50 pieces
Price:	US$36.59/50~199 pieces US$34.76/200~499 pieces US$31.29/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/ pieces/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Product Type:

USB Camera

Pixel:

8MP

Product Size:

15mmx15mm

Lens Angle:

120°(customizable)

Audio:

Support

Interface Type:

Type-C Interface

Colour:

Black

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/ pieces/month

Highlight:

8MP 4K USB camera module

Type-C USB camera with 100° lens

4K USB camera module for streaming

Product Description

15*15mm USB Wide Angle Fixed Focus Webcam 4K 8MP Mini OTG USB Camera

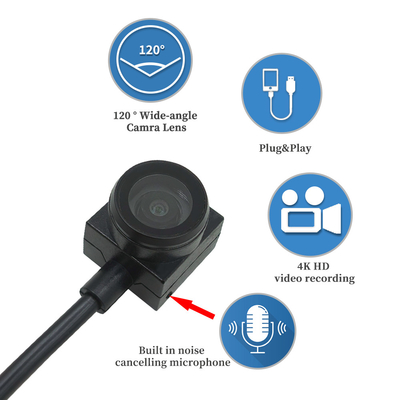

This is a 4K Ultra HD OTG USB network camera that redefines mini HD. It condenses the top image quality of 8 million pixels into a compact body measuring only 15x15mm, making it a masterpiece in the industry. Equipped with a 120 ° wide-angle lens, built-in noise cancelling microphone, mainstream Type-C interface, and thoughtful dust cover. Plug and play, widely compatible with Android phones, tablets, computers and other devices, it is an ideal imaging solution for mobile office, online teaching, high-definition live streaming and content creation.

Specifications

Sensor	1/3.2"
Pixel	8MP
Compression format	MJPG/YUV2
Frame rate	3264X2488 @15fps
Audio	support
Power frequency working voltage	DC 5V
Product size	15mmx15mm
White balance	automatic
Working temperature	<70°
Power consumption	0.25w
Model	HCU-GJ158(Type-c)
Interface type	Type-C interface
USB cable length	Default 1.2m
Lens	F.NO: 1.9mm Focal length:2.2 Distortion: <-8.7% Component:4E+IR Angle: 120°
Chip type	COMS
Support OS	Windows/Mac OS/Linux/Android

Core functions of the product

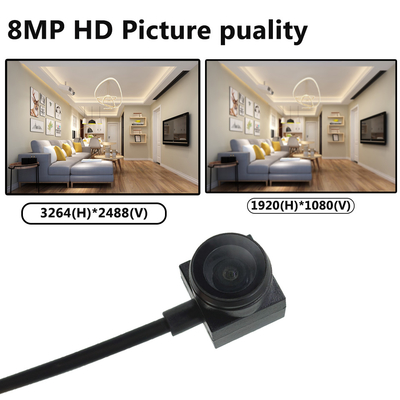

High definition imaging: 8-megapixel high-definition resolution (3264X2488 @15fps) provides delicate image quality and accurately captures details.

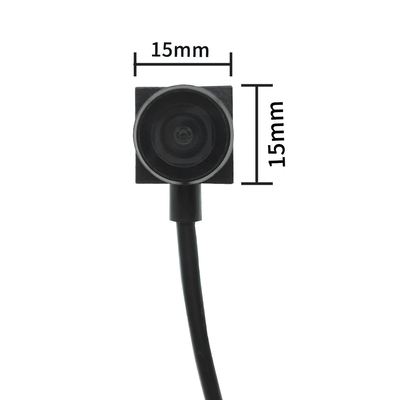

Exquisite body: 15x15mm size makes it easy to install and carry.
Plug and play: Type-C interface (or optional USB 2.0, Android) compatible with Windows, Mac, Linux, Android, etc. Supports UVC protocol with no additional drivers needed.
Adjustable image parameters: Supports adjusting exposure, white balance, gain, contrast, and saturation through software to adapt to complex lighting scenes.
Industrial grade wide-angle lens: 1.9mm focal length with fixed focal length wide-angle of 120° for wide field of view.

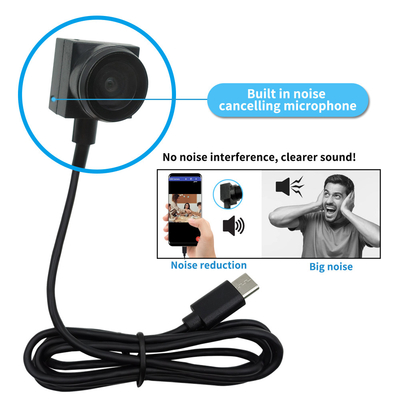

Audio: Built-in microphone supports synchronous compression and transmission of audio and video.

Professional customized services

We understand the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to create differentiated products.

Lens customization: Specific focal length, field of view angle, distortion control.
Customized casing: Design dedicated casing, bracket, or fixing method based on your device structure.
Cable and Interface: Customize cable length and interface type (USB, Android).
Pixel customization: Different resolution and frame rate models available (4MP, 5MP, 8MP, 12MP).

Camera application field

Industrial automation and machine vision, precision equipment status monitoring, security monitoring, embedded intelligent access control/attendance systems, miniaturized concealed monitoring equipment, vehicle mobile monitoring, smart home security, endoscope assisted imaging, laboratory equipment monitoring, vehicle driving recorder (DVR), small traffic monitoring equipment, intelligent retail terminals, drone/robot visual perception, education/conference system cameras, various embedded devices that require compact visual solutions, advertising machines, all-in-one machines, intelligent electronic scales, automatic welding equipment, fire water guns, external law enforcement instruments, external cameras for Android phones, computer cameras, high-speed cameras, etc.
