1080P USB Camera Type-C OTG UVC Driverless Home Security Door Peephole Camera

1080P USB Camera Type-C OTG UVC Driverless Home Security Door Peephole Camera

Brand Name: HCVsight
Model Number: HCU-DMY212(TPC)
MOQ: 50 pieces
Price: US$43.99/50~199 pieces US$41.79/200~499 pieces US$39.69/500~999 pieces
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Detail Information
Place of Origin:
ShenZhen,China
Pixel:
2mp
Compatibility:
Windows/Mac OS/Linux/Android
Frame Rate:
30fps

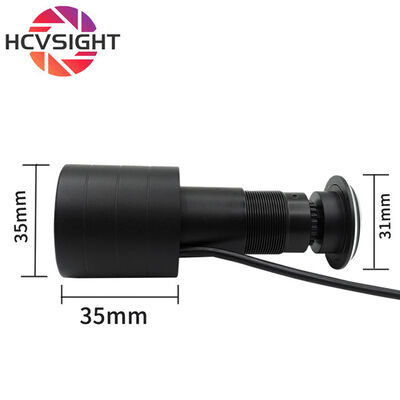

Product Dimensions:
(36-90mm)Adjustable
Sensor Type:
CMOS
Interface:
Type-c
Angle:
175°
Packaging Details:
Anti-static bag in Paper box(110mmx93mm41mm)
Supply Ability:
100000/pieces/mouth
Highlight:

Adjustable USB Camera

,

Plug and Play Peephole Camera

,

Full HD Security Camera

Product Description
1080P USB Camera Type-C OTG UVC Driverless Home Security Door Peephole Camera
Product Overview
This 1080p Type-C interface home access control camera uses a high-resolution 1080p USB camera sensor to deliver clear, distortion-free images. Offering powerful imaging performance through a plug-and-play Type-C OTG interface, this professional-grade UVC camera module is designed for mobile security, access control, and industrial inspection applications. As a compact USB camera solution optimized for Android phones, it is suitable for access control systems, apartment entrance monitoring, smart access control devices, mini surveillance devices, and portable inspection applications. Its UVC compatibility ensures seamless integration with mainstream Android devices, reducing development time and supporting rapid deployment in commercial projects.
Technical Specifications
Specification Detail
Sensor 1/2.9"
Resolution 2MP (1920x1080)
Frame Rate 30fps
Lens EFL:2.1mm, F.ON:2.4, 7G+650IRCUT elements
Viewing Angle D=175° H=132° V=96°
Interface Type-c (1.2m cable included)
Power DC 5V
Consumption 0.25W
Operating Temperature <70°C
Model Number HCU-DMY212(TPC)

Key Features


1080P High-Definition Imaging: This 1080p USB camera module features a high-quality optical sensor, capturing clear images and videos suitable for applications such as precision monitoring, visitor verification, and detection.

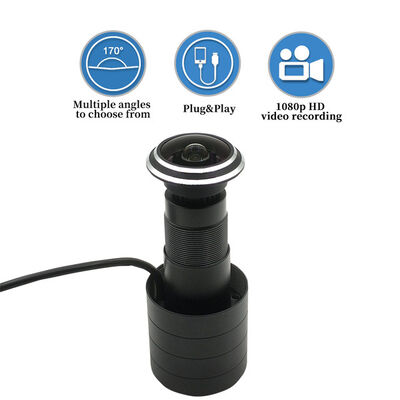

Plug and Play: The Type-C interface connects directly to OTG-enabled Android devices, requiring no setup and ready to use immediately after powering on.

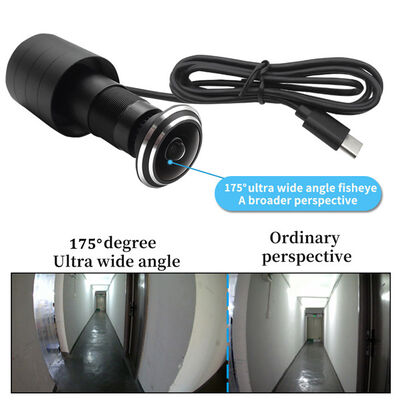

Ultra-Wide Field of View: The 1.7mm lens provides a 175° wide field of view, easily covering the entire area in front of a door.

Durable and Long-Term Use: This USB surveillance camera module is constructed from robust and durable materials, withstanding frequent plugging and unplugging, environmental changes, and continuous operation.

Flexible Adjustable Length: The 36x90mm adjustable length ensures perfect compatibility with most standard car door mirror mounting holes.

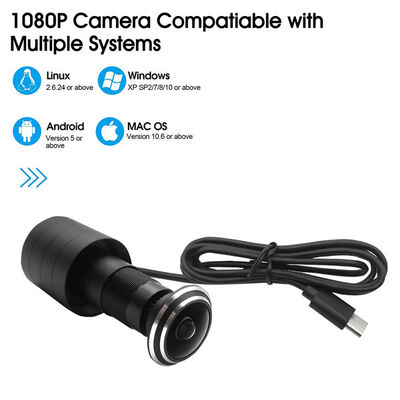

Wide Compatibility: Fully compatible with Android phones, tablets, and other devices, and can also be used for computer video conferencing.

Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.

Product application scenarios


Home door mirror monitoring: replacing traditional cat eyes, allowing clear and comfortable viewing of the situation outside the door through mobile phone screens, ensuring home safety.
Hotel/apartment access control: Add a convenient security barrier to hotel rooms or rental apartments.
Office/shop observation: used at the front desk or storefront to confirm the identity of visitors without attracting attention.
Mobile security inspection: As a portable inspection tool, it is used to check the situation at heights, in narrow spaces, or inside equipment.
High definition video calling: After connecting an Android device, it can be used as an ultra wide angle camera for video conferencing or live streaming.

Why Choose our USB Camera?
  • OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
  • Industrial grade reliability: ensuring stability during long-term operation.
  • Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
  • Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
  • Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.

FAQ

Q: What types of cameras do you manufacture?

A: We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including:

Embedded cameras for face/object/barcode recognition

Industrial cameras for automated inspection and measurement

Security vision cameras for surveillance and monitoring

Q: Can you customize cameras?

A: Yes! We offer OEM/ODM services and can customize:
- Resolution (1MP ~ 12MP+)
- Interface Type (USB 2.0/3.0, Type-C, Micro USB, RJ45, PoE Power, BNC, Dubon, etc.)
- Lens Options (Fixed Focus, Autofocus, Wide-Angle, Telephoto, etc.)
- SDK Support (Provides software support for secondary development and system integration)
- Housing Material (Metal/Plastic, supports waterproof, dustproof, and other industrial-grade designs)
- Module Solutions (Customizable embedded camera modules suitable for different application scenarios)

Q: How is the quality control?

A: All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

Q: What is the lead time?

A:In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).
