2MP USB Global Shutter Camera Module Distortion Free 60fps High-speed Capture

Brand Name:	HCVsight
Model Number:	HC-MU2MPQJKM-38
MOQ:	50 pieces
Price:	US$25.99/50~199 pieces US$24.69/200~499 pieces US$20.99/500~999 pieces
Payment Terms:	T/T
Supply Ability:	100000/pieces/mouth

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen，China

Pixel:

2mp

Compatibility:

Windows/Mac OS/Linux/Android

Frame Rate:

60fps

Color:

Green

Product Dimensions:

38mmX38mm

Sensor Type:

CMOS

Sensor Size:

CMOS_1/2.6"

Feature:

Global Shutter

Interface:

High Speed USB 2.0

Packaging Details:

Anti-static bag in Paper box（110mmx93mm41mm）

Supply Ability:

100000/pieces/mouth

Highlight:

2MP USB camera module global shutter

USB camera module distortion-free 60fps

high-speed capture USB camera module

Product Description

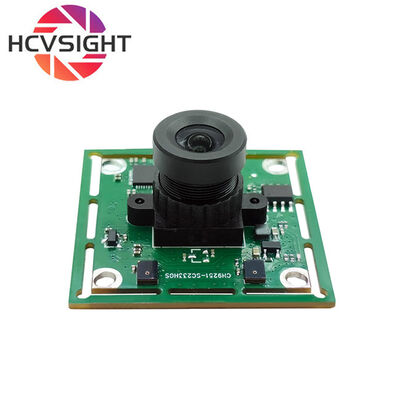

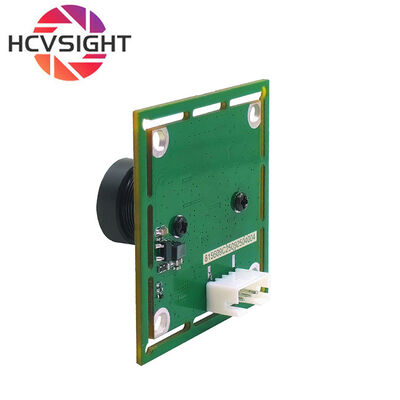

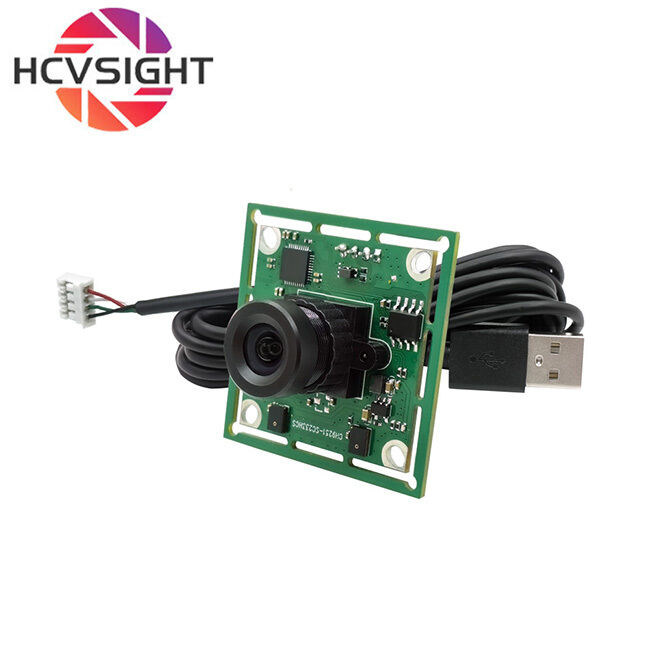

2MP USB Global Shutter Camera Module Distortion Free 60fps High-speed Capture

This 2MP global shutter USB camera module is designed for demanding machine vision, factory inspection, robotics, barcode scanning, AI imaging, and embedded systems applications. Equipped with a high-speed global shutter sensor, this USB camera module captures moving objects with exceptional clarity, avoiding the scrolling artifacts common in traditional cameras. Fully compatible with USB 2.0 UVC, this is a true plug-and-play industrial camera available for Windows, Linux, and Android platforms.

Technical Specifications

Parameter	Value
Sensor	1/2.6" COMS
Pixel	2MP
Compression format	MJPG/YUV2
Frame rate	1920x1080 30fps
Focus	Fixed Focus Lens
Operating voltage	DC 5v

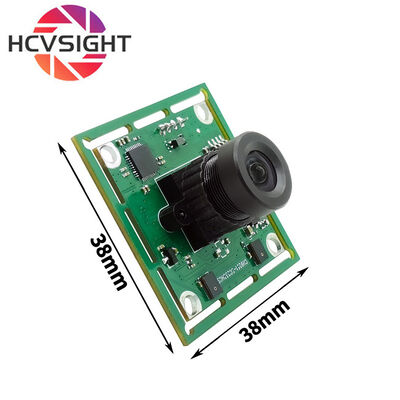

Dimensions	38x38mm
White balance	Automatic
Operating temperature	<70°C
FOV	90°
Power consumption	0.25w
Model No	HC-MU2MPQJKM-38
Interface type	USB2.0
Supported OS	WinXP/Mac OS/Linux/Win7/Win8/Win10/Android

Key Features

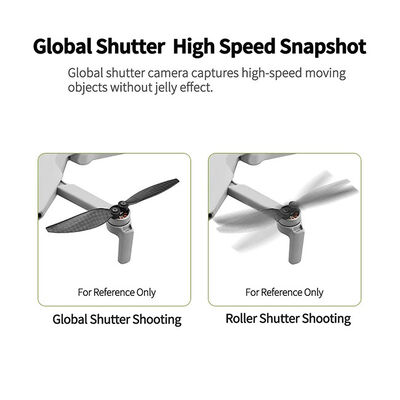

Global shutter for high-speed motion capture: Unlike rolling shutter sensors, the global shutter design clearly captures fast-moving parts, making it ideal for assembly line inspection, robotic arms, automation, and industrial sorting systems.
USB 2.0 UVC compatibility: This USB UVC camera requires no additional drivers. Simply plug it into a PC or embedded board, and the system will automatically recognize the device. Supported: Windows, Linux, Android
High-quality 2MP CMOS sensor: This sensor delivers clear 1080p images with low noise and accurate color reproduction, making it ideal for quality control, measurement, OCR, and AI image processing.

Application Scenarios

Industrial & Automation: Ideal for machine vision inspection, barcode recognition, robot guidance, and embedded quality control systems.
Medical & Laboratory Equipment: Perfect for portable medical imaging devices, endoscope camera module integrations, and diagnostic instruments where size and clarity matter.
Consumer Electronics & Smart Devices: Applied in AIoT devices, smart home cameras, portable scanners, and compact video communication products.
Security & Monitoring: Used in mini surveillance systems, wearable recording devices, and access control terminals requiring a mini USB camera module.

Why Choose Us?

Reduced R&D Costs: The USB plug-and-play interface and high compatibility simplify driver development and system integration.
Improved Productivity: High frame rates and high-definition images ensure accurate and efficient industrial inspection and machine vision systems.
Customizable Development Support: Compact modules allow OEM/ODM customers to customize dimensions and lenses.
Stability and Reliability: Industrial-grade housings and low-power design ensure reliable long-term operation and reduce maintenance costs.
Multi-Scenario Applications: From security monitoring to machine vision and embedded devices, the modules can be used across industries, helping customers quickly implement solutions.

Frequently Asked Questions

What types of cameras do you manufacture?

We specialize in manufacturing high-performance USB/IP/analog cameras and camera modules for machine vision, including embedded cameras for face/object/barcode recognition, industrial cameras for automated inspection and measurement, and security vision cameras for surveillance and monitoring.

How is the quality control?

All cameras undergo rigorous testing (EIS, low-light performance, durability) and comply with CE/FCC/RoHS.

What is the lead time?

In-stock items: 3-7 days. Custom orders: 2-4 weeks (depending on specifications).

Can I purchase samples?

Sure, we support flexible procurement and sampling: sample procurement (1-50 pieces) supports rapid testing and reduces development risks. Bulk purchases enjoy tiered pricing discounts and support long-term cooperation.

Lens Specification Sheet Download Detailed Technical Specifications
